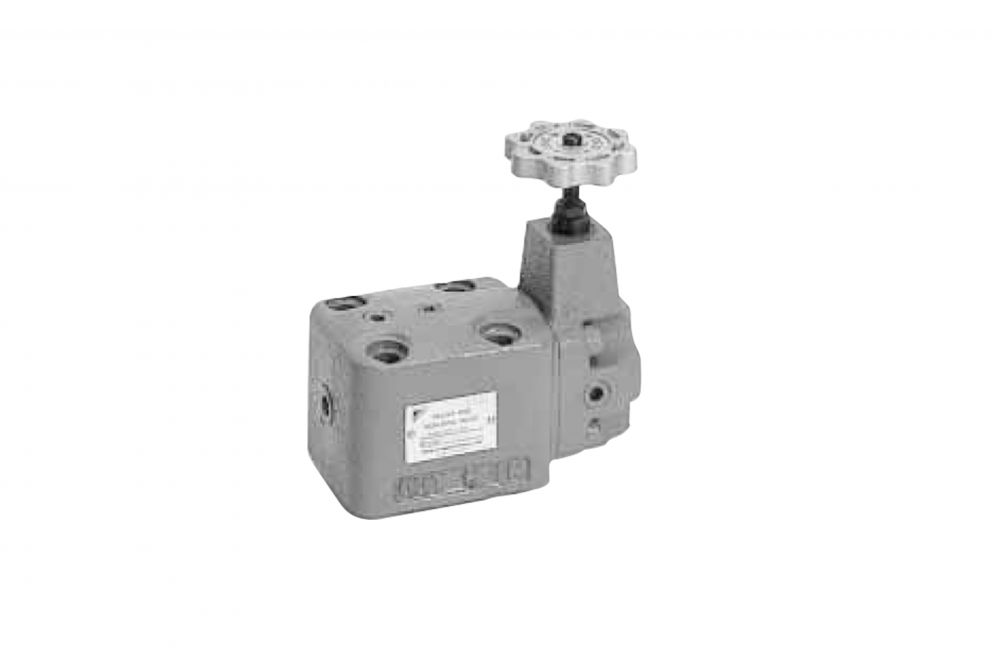

Daikin SGR - Relief Reducing Valve

Auburn Gear
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.


  • The Daikin SGR Relief Reducing Valve has a combination circuit with a reducing valve, a relief valve and check valve controlled a system, but this relief valve gets together all these three valves into one unit and functions as a balancing valve.
  • As the pressure variation corresponding to a load flow rate variation is small, the control accuracy increases.
  • Pressure can be regulated by the handle.
  • As it is a external drain type, the back pressure in the return line doesn’t influence the performance.

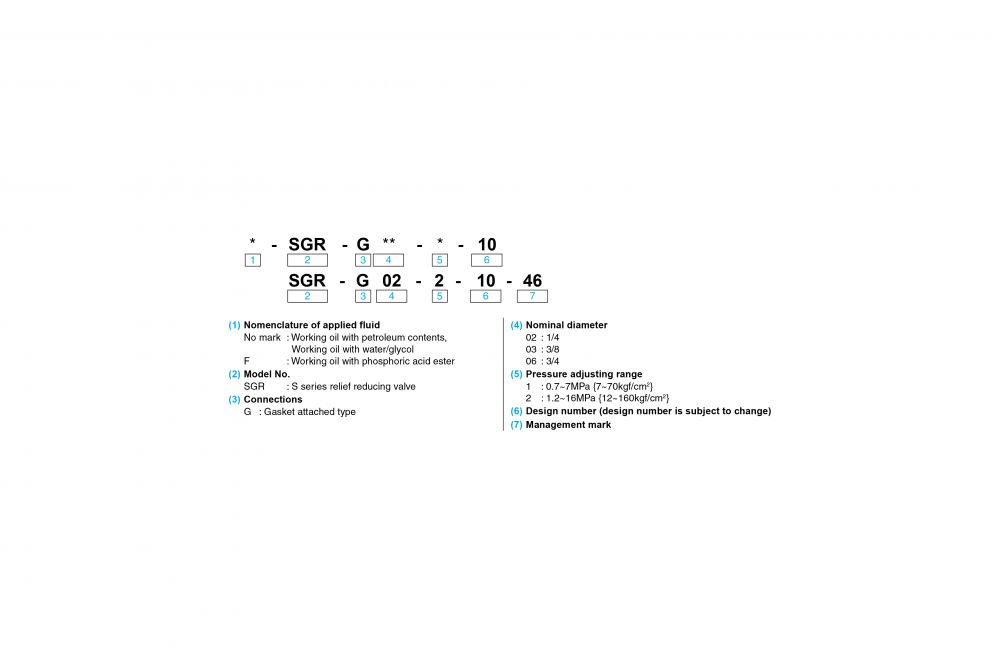

Description SGR-G02-1-10 SGR-G02-2-10-46 SGR-G03-1-10 SGR-G06-1-10 SGR-G06-2-10
 Nominal Diameter 1/4" 1/4" 3/8" 3/4" 3/4"
 Max Operating Pressure 10.5 MPa {105 kgf/cm²}  17.5 MPa {175 kgf/cm²} 10.5 MPa {105 kgf/cm²}  17.5 MPa {175 kgf/cm²}  *~21 MPa {~210 kgf/cm²}
 Pressure Adjusting Range 0.7 ~ 7 MPa {7 ~ 70 kgf/cm²} 1.2 ~ 16 MPa {12 ~ 160 kgf/cm²} 0.7 ~ 7 MPa {7 ~ 70 kgf/cm²} 0.7 ~ 7 MPa {7 ~ 70 kgf/cm²} 1.2 ~ 16 MPa {12 ~ 160 kgf/cm²}
 Max Flow Rate 20 L/min 20 L/min 40 L/min 100 L/min 100 L/min
 Weight 2.2 Kg 2.2 Kg 3.3 Kg 6.5 Kg 6.5 Kg
