Daikin SUPERUNIT Hybrid 40 Series - Hydraulic Power Unit with 100 Litre Tank

Daikin
Contact us for current availability
View all specifications

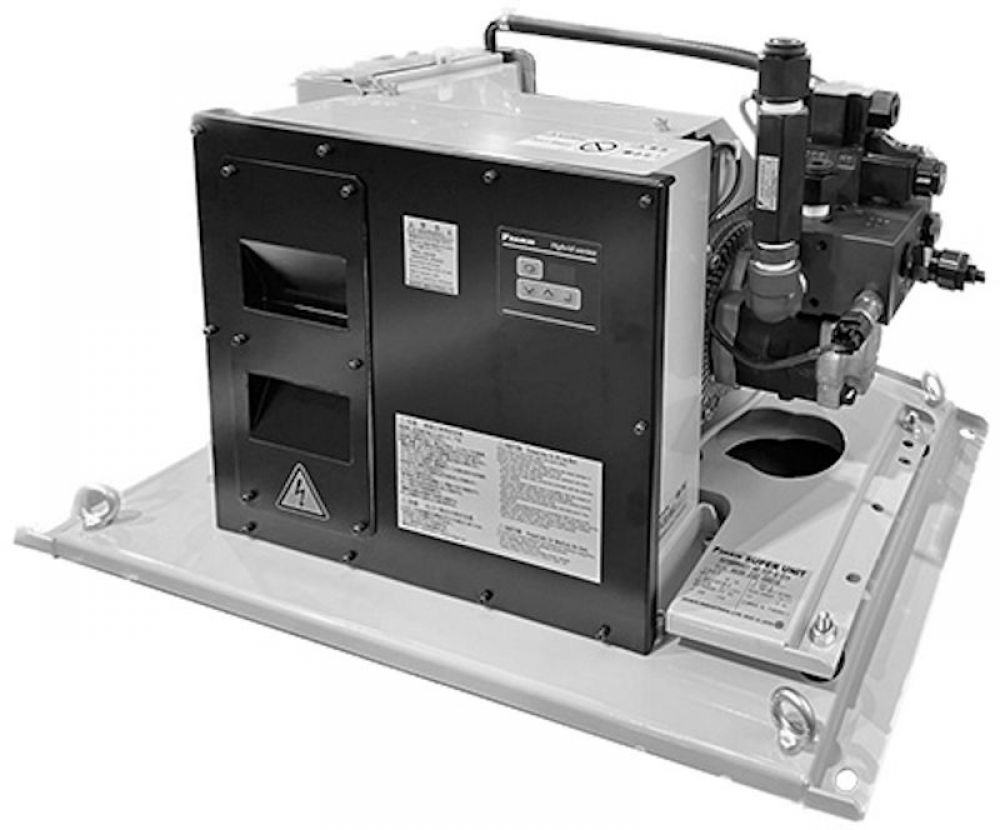

Frame mounted, 3 phase, 400v version of the SUT - Including a large 100 Litre oil reservoir.

Daikin are now supplying a range of Super Units using the industry standard power supply of 400vdc, 3ph, making them ideal for easy integration with your industrial application.

There are 3 base models for the 40 Series available:

  • SUT00S3016: Pressure up to 160 bar, Flow rate up to 24.3 l/min
  • SUT00D6021: Pressure up to 210 bar, Flow rate up to 61 l/min
  • SUT00D8021: Pressure up to 210 bar, Flow rate up to 82 l/min

The above models are all available with the following 3 configurations:

  • Mounting frame (no tank)
  • 100 Litre tank (with suction filter, level switch and customisable blind plate)
  • 100 Litre tank (with suction filter, level switch AND a multi-station manifold for ISO 4401-03 valves and return filter)

The innovative hybrid SUPER UNIT hydraulic power units represent the culmination of Daikin Industries LTD's design and manufacturing expertise. These units seamlessly integrate hydraulic technology with an interior permanent magnet synchronous motor, resulting in a  powerful unit that excels in both torque and efficiency, all while effectively mitigating heat and noise production. This remarkable combination substantially reduces energy consumption.

The motor-pump's exceptional efficiency ensures minimal oil heating, which brings several advantages to the application in which the SUT is installed. This includes prolonged lifespan for oil and heat-sensitive components, as well as reduced heat dissipation into the surrounding environment.

In SUT models that are equipped with a double pump, the primary pump delivers high pressure and limited flow. When the flow rate request is higher than the flow rate that the primary pump can supply, the second pump is also activated, guaranteeing the required flow (at lower pressure). The transition from single to combined operation is done by a solenoid valve, managed by an external command signal.


Product Features

  • Energy Saving - high efficiency IPM motors provide huge savings (typically 50%)
  • Low noise (just 60dB at 206 bar with the double pump unit)
  • Multi stage pressure/flow rate control - sixteen pressure (P) and flow (Q) settings are available
  • Maintenance/management function - Internal data of the super unit can be managed via using a connected laptop
  • Excluded from high-efficiency motor regulations - Super units that incorporate IPM motors are excluded from these regulations
  • Reduce your control valves! Using on-board parameter settings, conventional flow and pressure control valves are not required
  • Remote control operation - PLC compatible through RS232C serial communication
  • Analog command input - Enables continuous control of pressure & speeds as required

  SUT00S3016 SUT00D6021 SUT00D8021
Identification Code Q Q100 Q Q100 Q Q100
Maximum operating pressure (bar) 160 210 210

Operating pressure range

- 1st pump (HP)

- 1st + 2nd pump (HP+LP)



5~ 60

-



5~210

5~70



5~210

5~70

Operating flow range (theoretical)

- 1st pump (HP)

- 1st + 2nd pump (HP+LP)



3.5 ~24.3

-



3.1~21.2

5~70



4.1~28.7

11.6~82

Tank capacity - 100 - 100 - 100
Main Supply voltage (V) 3 Phase, AC 380 ~ 460 Volts, 50/60Hz ± 10%
Controller Supply Voltage (V) - 24V DC (min 50 W)
Nominal motor power (KW) 3.0 3.0 4.0
Rated Current (A) 9.3 10.3 14.1
Fluid temperature range in tank (°C) 0 to +60 (recommended +15 to +50)

Noise level range (dB) (Distance 1 metre)

- 1st pump (HP)

- 1st + 2nd pump (HP+LP)



DH (160 bar) 52 dBA

25.6 l/min (20 bar) 70 dBA



DH (210 bar) 57 dBA

61.1 l/min (20 bar) 74 dBA



DH (210 bar) 57 dBA

83 l/min (20 bar) 77 dBA

Weight: (KG)

- Without Tank

- 100

- 100M*



56

-

-



-

126

132



62

-

-



-

133

148



76

-

-



-

147

164
