Duplomatic DS3JB - Solenoid Operated Directional Control Valve

Auburn Gear
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

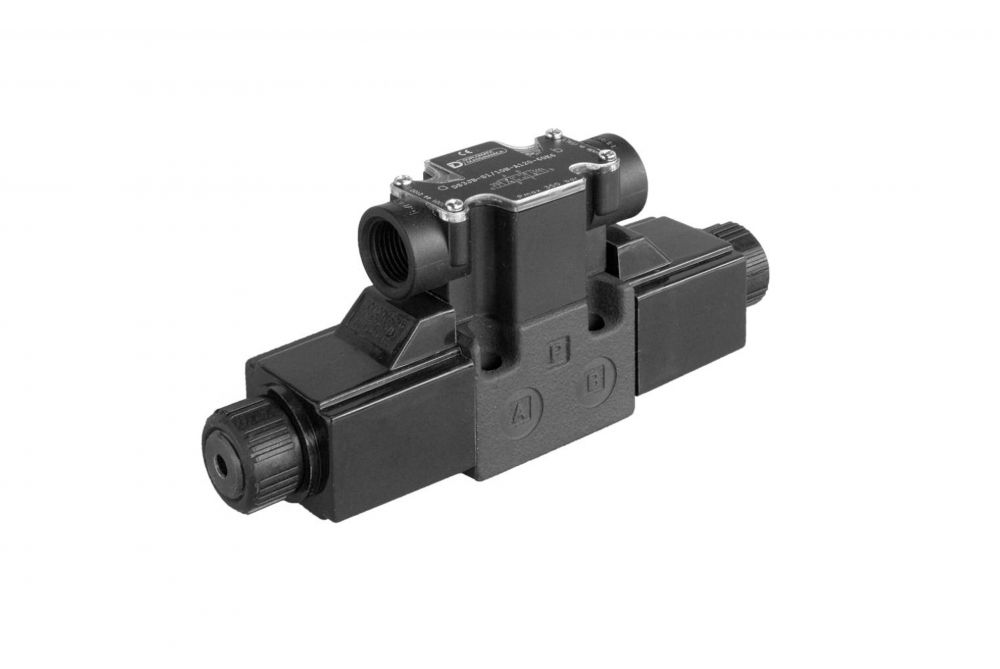

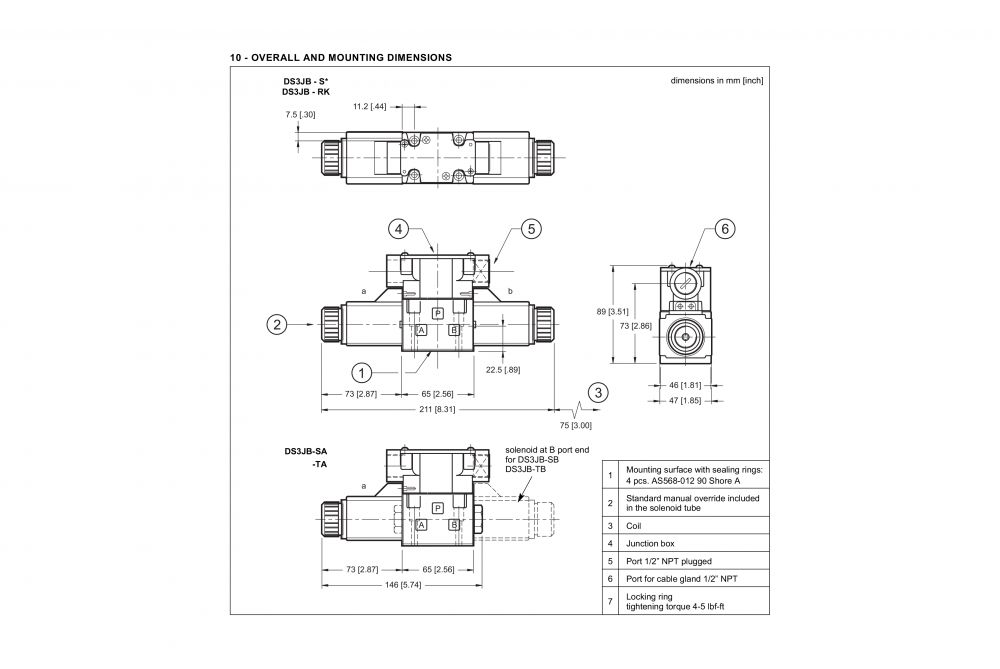

The Duplomatic DS3JB Direct acting, subplate mounting directional control valve, with mounting surface according to NFPA D03 standard. The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the flow pressure drop. Wet armature solenoids with easily removable interchangeable coils are used. It is supplied with junction box for the electrical connection.

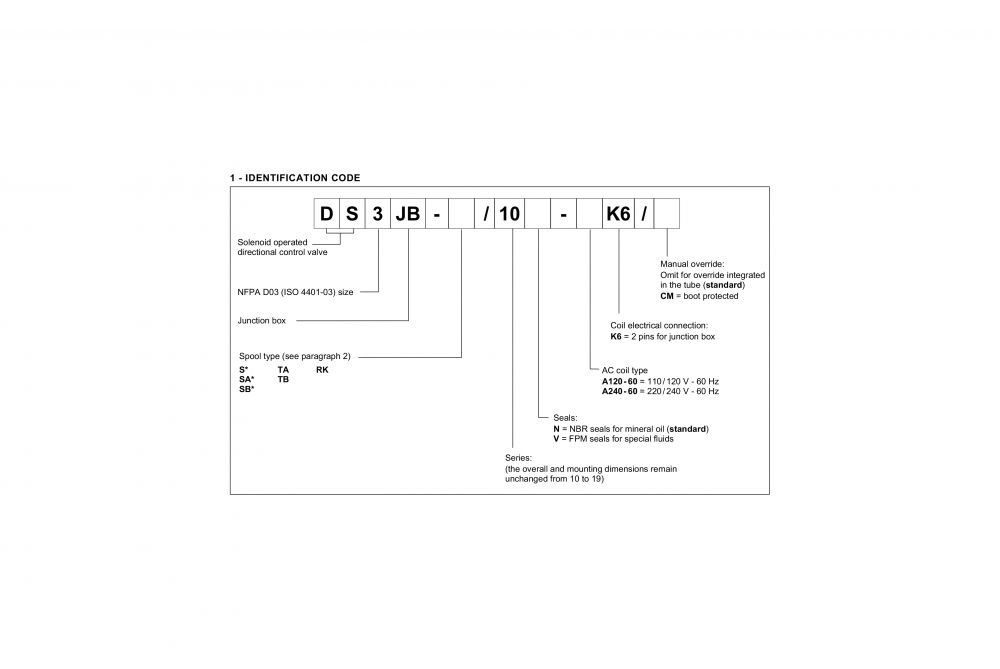

The valve is supplied with 3 or 4 way designs and with several interchangeable spools with different porting arrangements. The valve is available with AC solenoids.


Description Units
Maximum Operating Pressure - Ports P - A - B 5000 psi
Maximum Operating Pressure - Port T 2300 psi
Maximum Flow Rate 20 gpm
Electrical Connections Junction Box
Ambient Temperature Range -4 / 122 °F
Fluid Temperature Range -24 / 176 °F
Fluid Viscosity Range 60 ÷ 1900cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 20/18/15
Recommended Viscosity 120 SUS
Single Solenoid Valve Mass 1,5 kg
Double Solenoid Valve Mass 2 kg
