Duplomatic DSP10 - Pilot Operated Distributor Solenoid or Hydraulic Controlled

Auburn Gear
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

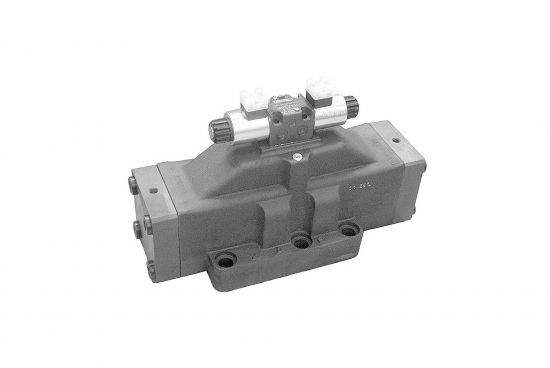

The Duplomatic DSP10 piloted valve is a 4-way hydropiloted distributor, CETOP 10, with a connection surface in accordance with the ISO 4401-10 (CETOP RP121H) standards, operated by a ISO 4401-03 (CETOP 03) solenoid directional valve.

Available with different spool types and with some options for the opening control. Available with both the solenoid and the hydraulic control from the X and Y ways. The piloting and the drainage can be made inside or outside the valve by inserting or removing the proper threaded plugs located in the main directional control valve.


Description Units
Maximum Operating Pressure - Ports P - A - B 350 bar
Maximum Operating Pressure - Port T (External Drainage) 210 bar
Maximum Flow Rate from Port P to A - B - T 1100 l/min
Ambient Temperature Range -20 / 50°C
Fluid Temperature Range -20 / 80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 20/18/15
Recommended Viscosity 25 cSt
DSP10 Mass 50 kg
DSC10 Mass 48 kg
