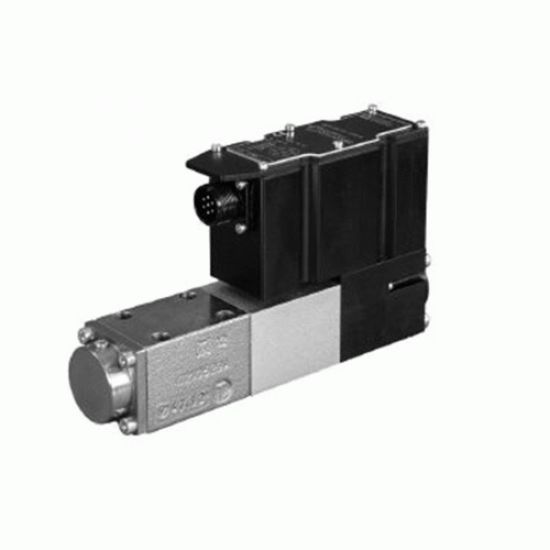

Duplomatic DXE3J - Electro Hydraulic Servo Proportional Valve

Duplomatic Oleodinamica designs and produces a complete range of hydraulic components that are suitable for all application sectors of both industrial and mobile fields.

The Duplomatic DXE3J valve is a four-way (3 fail-safe position) servo-proportional valve where the spool moves inside a sleeve. It is operated by a proportional solenoid highly dynamic, which achieves high performance and not requires pilot pressure. The spool position is controlled by a linear transducer (LVDT) in closed loop which ensures high precision and repeatability. It is available in four different flow ranges up to 40 l/min, with spools with zero overlap.

The valve is featured by integral electronic based on SMD technology which ensures standard regulations and simplifies the electric wiring. The unit does not require any adjustment other than the possible electronic regulation of the zero. Suitable for control applications with closed loop of position, velocity and pressure. With a power down or without the enable input, the spool moves automatically at fail-safe position.
