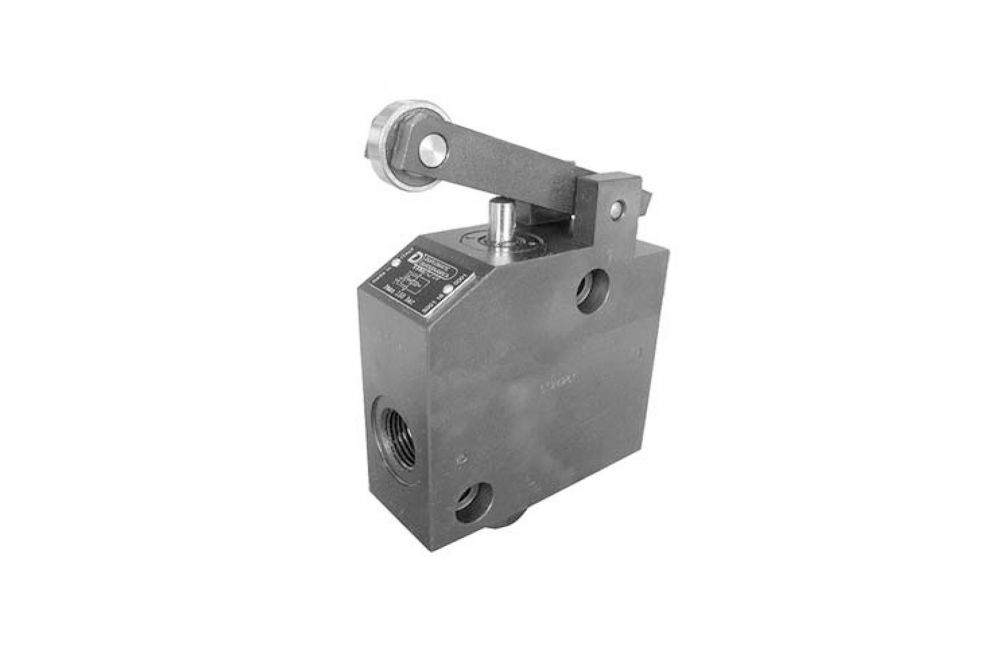

Duplomatic K4WA/C - Mechanically Operated Deceleration Valve

Duplomatic
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic K4WA/C valve is a mechanically operated decelerating valve with BSPP threaded ports for in-line mounting on hydraulic lines. It is normally used to change the movement speed of the hydraulic axis, such as changing from fast to slow, or for slow stops. The valve is normally open in the free condition and allows free flow passage from port P to port A. The flow is partially or completely shut off byoperating the mechanical drive of the valve. It is always supplied with a built in check valve that allows reverse free flow from port A to port P.


Description Units
Maximum Operating Pressure 150 bar
Cracking Pressure of the Check Valve  0,5 bar
Maximum Flow Rate  40 l/min
Needed Force on the Lever to operate at Beginning  6,8 kg
Needed Force on the Lever to operate at End Stroke  12,0 kg
Maximum Leakage with Closed Valve ((∆p 100 bar)  0,05 l/min
 Stroke (From all Open to Completely Closed) 20 mm
 Ambient Temperature Range  -20 / 50°C
 Fluid Temperature Range  -20 / 80°C
 Fluid Viscosity Range  10 ÷ 400 cSt
 Fluid Contamination Degree  According to ISO 4406:1999 class 20/18/15
 Recommended Viscosity  25 cSt
 Mass 2,5 kg
