Duplomatic MERS - Flow Restrictor Valve

Duplomatic
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~

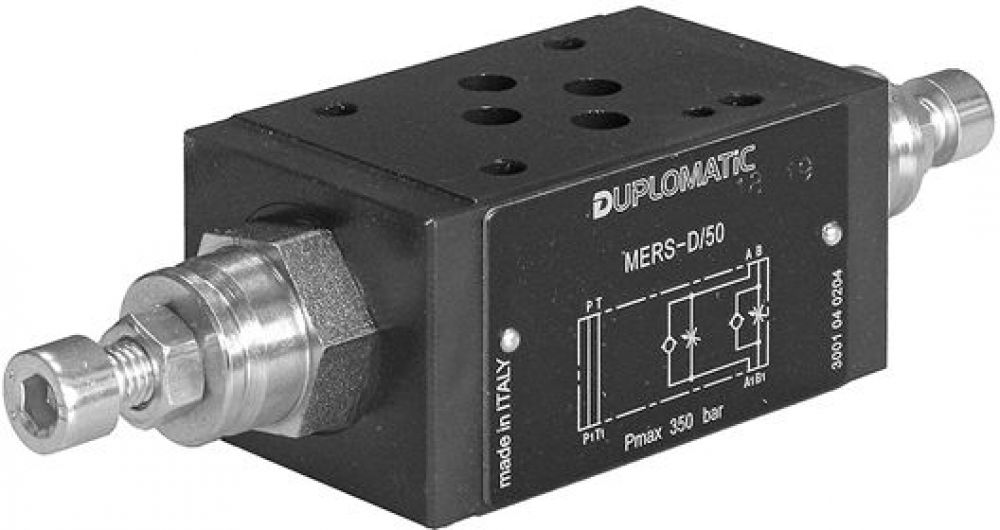

Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage. The Duplomatic MERS is a non-compensated flow control valve with a check valve for reverse free flow. It is made in the modular version and with mounting surface according to the ISO 4401 (CETOP RP 121 H) standards and can be assembled quickly without use of pipes, but using only suitable tie-rods or bolts, thus forming compact modular groups.

Also available as a reversible valve (G* versions). Meter-in or meter-out control depending on the way of assembly the valve on the OR subplate. All the configurations have an incorporated check valve that allows reverse free flow (cracking pressure of 0,5 bar). Normally supplied with a hexagonal head adjustment screw


Description Units
Maximum Operating Pressure 350 bar
Maximum Pressure on Port T 10 bar
Maximum Flow Rate in the Controlled Lines 50 l/min
Maximum Flow Rate in the Free Lines 75 l/min
Drainage Flow Rate ≤ 0,08 l/min
Ambient Temperature Range -20 / 50 °C
Fluid Temperature Range -20 / 80 °C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 20/18/15
Recommended Viscosity 25 cSt
Mass 1,4 kg
