Duplomatic MVR - Direct Check Valve

Contact us for current availability
View all specifications
~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

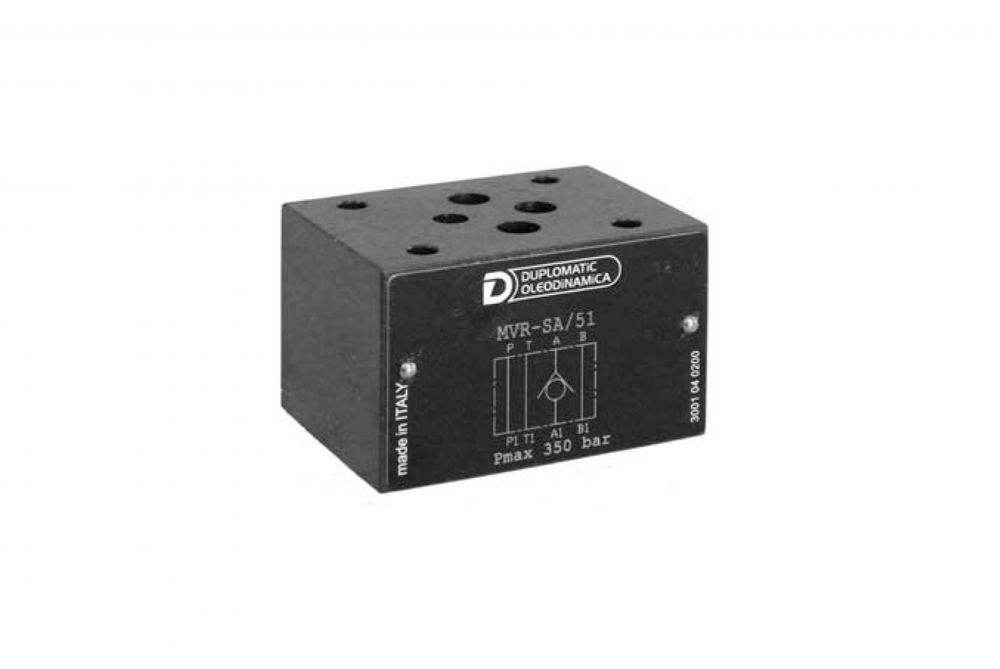

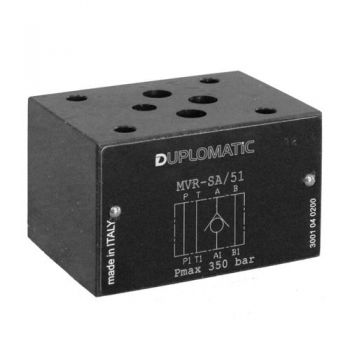

The Duplomatic MVR valve is a direct check valve made as a modular version with mounting surface according to the ISO 4401 (CETOP RP 121H) standards. Used to avoid oil backflows and self-emptying of lines, or to generate back-pressures. Can be assembled quickly under the ISO 4401-03 (CETOP 03) directional solenoid valves without the use of pipes, using suitable tie-rods or bolts. Available in versions with the check valve only on single line (P, T, A or B) or on both lines (P and T or A and B).

Description Units
Maximum Operating Pressure 350 bar
Check Valve Cracking Pressure 3 - 0,5 -5 bar
Maximum Flow Rate in Controlled lines 50 l/min
Maximum Flow Rate in the Free Lines 75 l/min
Ambient Temperature Range -20 / 50°C
Fluid Temperature Range -20 / 80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 20/18/15
Recommended Viscosity 25 cSt
Mass 1 kg
