Duplomatic P2A*L - Manifolds for CETOP 3 Valves with Side Ports

Contact us for current availability
View all specifications
~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

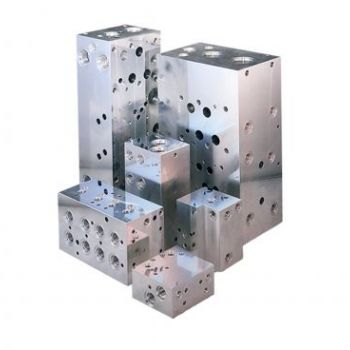

The Duplomatic P2A*L series of manifolds is designed for connection in parallel of two or more ISO 4401-03 (CETOP 03) valves. The monocast design enables the simple creation of circuits without the use of pipes and fittings, thereby reducing overall dimensions to a minimum.

All sections feature a common pressure and discharge fitting on both ends of the subplate. Maximum flow rate can be increased up to double the output if the sub-plates are powered at both ends. Each section is fitted with work ports A and B positioned on the side of the sub-plate. Subplates are available in aluminium.

Description Units
Maximum Operating Pressure - Ports P - A - B 210 bar
Maximum Operating Pressure - Port T 140 bar
Maximum Flow 50 l/min
Port Dimensions P - Pressure 1/2" BSP
Port Dimensions T - Lower Drainage 1/2" BSP
Port Dimensions A/B - Users 3/8" BSP
Ambient Temperature Range - 20 / 50 °C
Fluid Temperature Range - 20 / 80 °C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree 25 cSt
Recommended Viscosity According to ISO 4406:1999 Class 20/18/15
