Duplomatic RLM3 - Electric Selection Valve

Contact us for current availability
View all specifications
~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

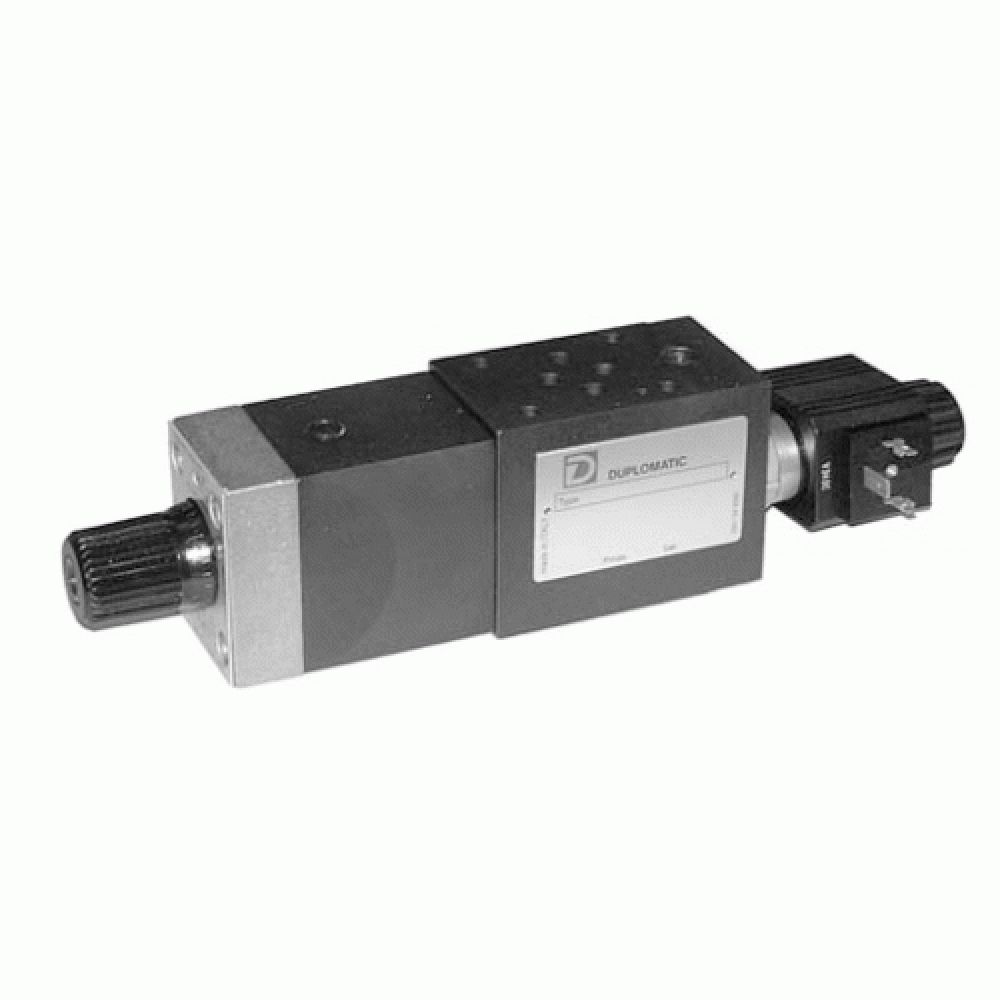

The Duplomatic RLM3 valve is a compact group that allows control of the fast/slow flow through use of an open/close solenoid valve. The adjustment of the flow is carried out with the RPC1 compensated flow control valves (see catalogue 32 200) with six adjustment ranges. The fast/slow speed selection is obtained with the KT08 solenoid cartdrige poppet valve (see catalogue 43100) Made as a modular version, the mounting surface is according to iso 4401 (CETOP RP121H) standards.

The RLM3 valve can be assembled quickly under the ISO 4401-03 (CETOP 03) directional solenoid valves without use of pipes, permitting the construction of directional and speed controls for work actuators in a single mounting position.

Description Units
Maximum Operating Pressure 250 bar
Maximum Flow Rate in Controlled Lines 1 - 4 - 10 - 16 - 22 - 30 l/min
Maximum Flow Rate in the Free Lines 65 l/min
Minimum Controlled Flow Rate 0,025 l/min
Ambient Temperature Range -20 / 50°C
Fluid Temperature Range -20 / 80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 20/18/15
Recommended Viscosity 25 cSt
Mass 3,1 kg
