Duplomatic RPC* - Pressure and Temperature Flow Control Valves

Contact us for current availability
View all specifications
~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

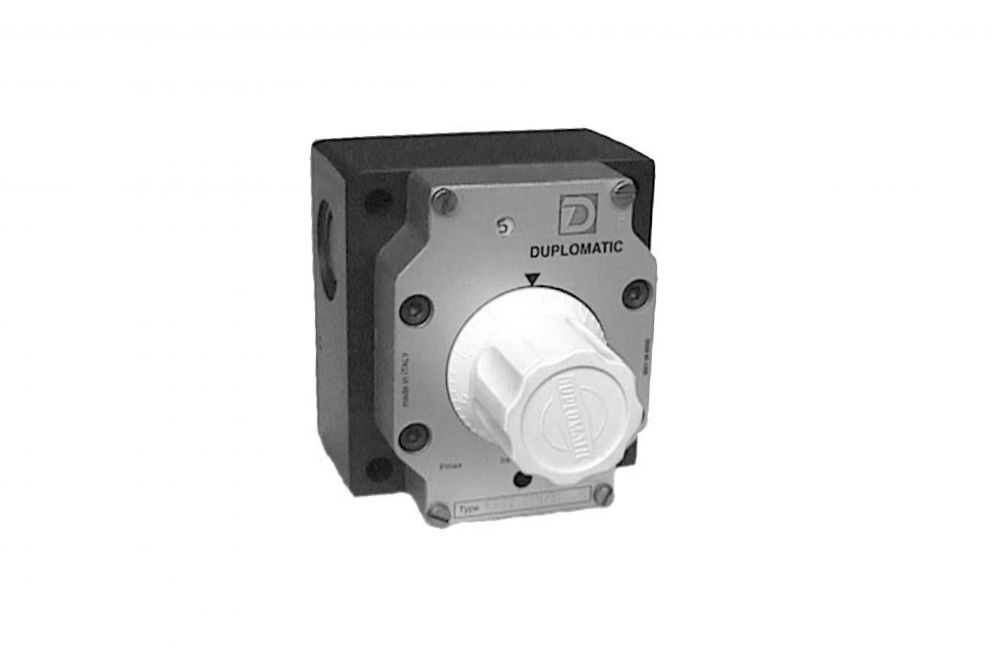

The Duplomatic RPC* valve is a pressure and temperature compensated flow control valve. The flow rate is adjusted with a calibrated knob that modulates the opening of the control gap and can be locked in any adjustment position by a screw. The flow rate adjustment range is carried out with six turns of the knob, with indication of the number of turns made. A one-turn adjustment on the knob, RPC*/M, is available upon request.

Description RPC2 RPC3
Maximum Operating Pressure 320 bar  250 bar
Check Valve Cracking Presssure  0,5 bar  0,5 bar
Minimum Pressure Difference between E and U  10 bar  12 bar
Maximum Controlled Flow Rates  22-38-70 l/min  100 - 150 l/min
Minimum Controlled Flow Rated  0,050 l/min 0,120 l/min
Ambient Temperature Range  -20 / 50 °C  -20 / 50 °C
Fluid Temperature Range   -20 / 80 °C -20 / 80 °C
Fluid Viscosity Range  10 ÷ 400 cSt 10 ÷ 400 cSt
Fluid Contamination Degree  According to ISO 4406:1999 Class 20/18/15  According to ISO 4406:1999 Class 20/18/15
 Recommended Viscosity  25 cSt  25 cSt
 Mass  3,6 kg  7,8 kg
