Duplomatic RPC*-*-T3 Pressure and Temperature Three-Way Flow Control Valves

Contact us for current availability
View all specifications
~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

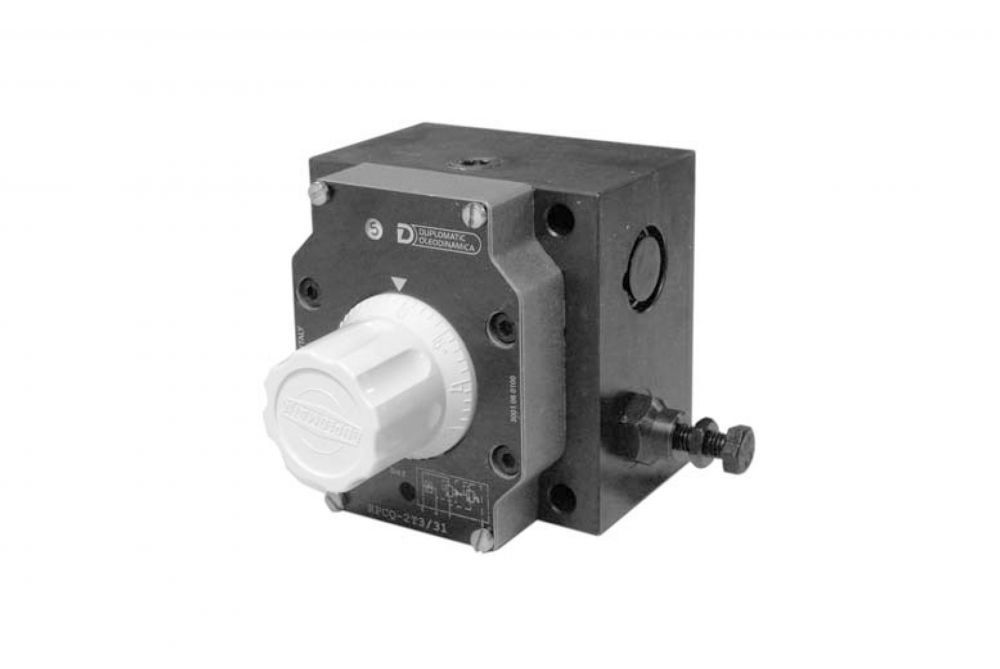

The Duplomatic RPC*-*-T3 valve is a pressure and temperature compensated three-way flow control valve. It allows the control of flow rate to an actuator by discharging the flow exceeding that required by the plant at any one moment. As a consequence, energy consumption is reduced and appropriate at every instant throughout the cycle. Single-turn adjustment knob (RPC**/M) and built-in pressure relief valve (RPCQ*) are available upon request.

Description RPC*-2T3 RPC*-3T3
Maximum Operating Pressure 250 bar 250 bar
Minimum Pressure Difference between E and U 10 bar 12 bar
Maximum Controlled Flow Rate  50 l/min  150 l/min
Minimum Controlled Flow Rate  0,060 l/min 0,130 l/min
Ambient Temperature Range -20 / 50° C  -20 / 50° C
Fluid Temperature Range -20 / 80° C  -20 / 80° C
Fluid Viscosity Range  10 ÷ 400 cSt  10 ÷ 400 cSt
Fluid Contamination Degree  According to ISO 4406:1999 class 20/18/15 According to ISO 4406:1999 class 20/18/15
Fluid Contamination Degree for Flow Rate <0.5 l/min  According to ISO 4406:1999 class 18/16/13 According to ISO 4406:1999 class 18/16/13
Recommended Viscosity 25 cSt  25 cSt
Mass  4,7 kg  9 kg
