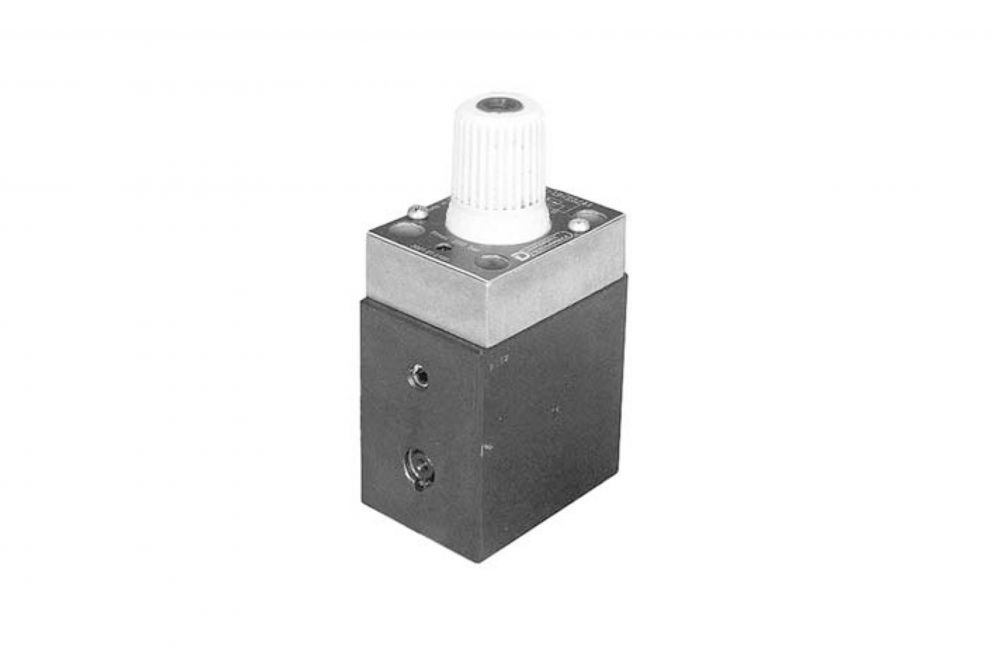

Duplomatic RPC1-T3 - Pressure and Temperature Three-way Flow Control Valve

Duplomatic
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic RPC1-T3 pressure and temperature compensated three-way flow control valves serve to control the flow sent to the actuator and to discharge it, which exceeds that required, back to tank at system pressure rather than at relief value pressure. The flow rate adjustment range is carried out with three turns of the knob and an indicator shows the number of turns made.

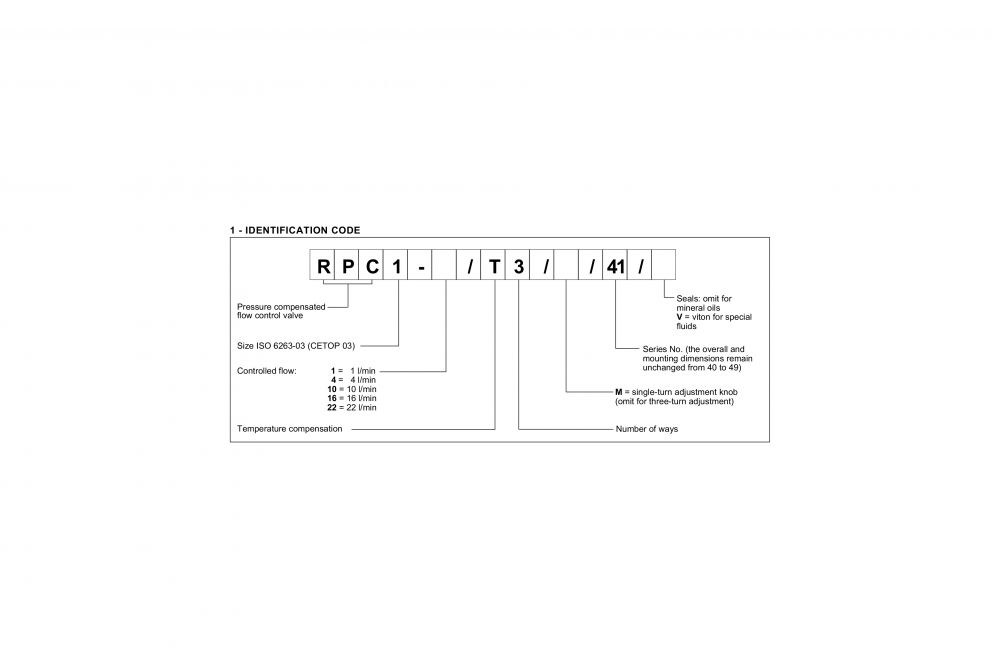

A one-turn adjustment on the knob, RPC1*/M, is available upon request. The adjustment knob can be locked in any position in the adjustment range by a screw.


Description RPC2
Maximum Operating Pressure 250 bar
Minimum Pressure difference between A and B  12 bar
Maximum Controlled Flow Rates  1 -4 - 10 - 16 - 22 l/min
Minimum Controlled Flow Rate (for 1 and 4 l/min)  0,035 l/min
Ambient Temperature Range  -20 / 50 °C
Fluid Temperature Range   -20 / 80 °C
Fluid Viscosity Range  10 ÷ 400 cSt
Fluid Contamination Degree  According to ISO 4406:1999 class 20/18/15
Fluid Contamination Degree for flows <0,5 l/min According to ISO 4406:1999 class 18/16/13
Recommended Viscosity  25 cSt
Mass  1,5 kg
RPC1/T3 Number of Adjustment Knob Turns 3
RPC1-/T3/M Number of Adjustment Knob Turns  1
