Habor HBO Series Oil Cooler

Habor
Contact us for current availability
View all specifications

HBO Series

Oil cooler for lubrication oil and hydraulic oil.

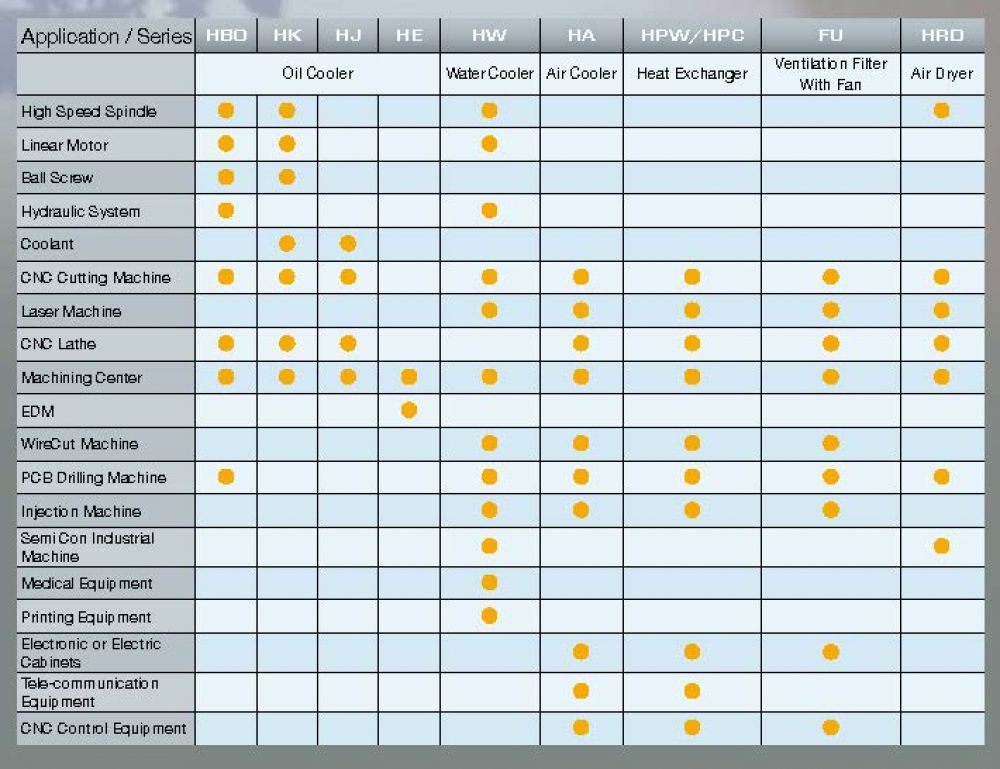

Habor refrigeration chillers (utilised in both oil and water-cooling installations) are manufactured in Taiwan. The Habor range of chillers is broad and can be found in multiple applications including, precision CNC machine tools for cooling their hydraulic systems and cooling of cutting fluids.

The Habor chillers have been precision engineered to deliver accurate fluid temperature control for optimal performance and reliability.

The HBO range has been designed specifically for cooling of lubrication and hydraulic oil.

Features:

  • Prevents premature deterioration of oil therefore prolonging oil life
  • Provides accurate temperature management to ensure sensitive components, I.e. spindles and gear units can operate at their peak efficiency
  • Simple operation system with built in logger and feedback
  • Extends life of all temperature sensitive components which also massively reduces machine downtime

Looking to repair your chiller?

We offer a comprehensive range of spare parts to repair your existing Habor chiller unit . Please call +44(0)1172 130042 or Email with your chiller part number and serial number for availability.


Model Number HBO-50PS HBO-250PS HBO400PS HBO-600PS HBO-750PS HBO-900PS HBO-1000PS HBO-2RPS HBO-3RPS HBO-4RPS HBO-5RPS
Cooling capacity KCAL/H. 50/60Hz 430/500 840/1000 1250/1500 1700/2100 2600/3000 3200/3800 3750/4500 5000/6000 7500/9000 10000/12000 12500/15000
Cooling capacity W. 50/60Hz 500/580 980/1170 1450/1750 1970/2450 2900/3500 3700/4400 4350/5250 5820/6980 8720/10470 11630/13960 14540/17450
Cooling capacity BTU/H. 50/60Hz 1720/2000 3360/4000 5000/6000 6700/8400 10000/12000 12800/15200 15000/18000 20000/24000 30000/36000 40000/48000 50000/60000
Temperature controller: A Fixed temperature control type (setting range 10~40°C)
Temperature controller: Differential temperature control type (tacing ambient/machine body temperature (setting range -9.9~+9.9°C)
Use range. Ambient Temp °C 10~40°C (Standard)
Use range. Oil Temp °C 10~45°C
Power source 3Ø 200~230V 5060Hz
Motor. Compressor 250 478 845 845 1185 1500 1700 2480 3350 4400 6100
Motor. Fan 200 180 350 500
Motor. Pump 200 400 750 2200
Pump flow rate (l/min) @ 50Hz 3.7 6.7 16.6 25 33 57 64
Pump flow rate (l/min) @ 60Hz 4.5 8 20 30 40 68 77
Piping diameter. Inlet PT 1/4" PT 1/2" PT 1" PT 1"  PT 1- 1/4"
Piping diameter. Outlet PT 1/4"  PT 1/2" PT 1" PT 1" PT 1-1/4"
Max pressure loss (kgf/cm²)  3.0
Oil viscosity Hydraulic oil, lubrication oil 4-300 cSt
Tank capacity (optional) 2.5 Ltr 7 Ltr 19 Ltr 20 Ltr 20 Ltr 35 Ltr 31 Ltr 90 Ltr
Dimension WxDxH (mm) w/out tank 270x475x436 373x475x686 370x475x765 370x475x840 575x430x1045 500x770x1295 500x770x1295 554x690x1525 1085x740x1400
Dimension WxDxH (mm) with tank 270x475x436 373x475x1030 370x475x950 370x475x1030 575x430x1200 500x770x1295 500x770x1295 554x690x1525 1085x780x1400
Weight (kg) Without tank 33 51 61 66 96 147 176 181 291
Weight (kg) With tank 34 54 71 77 118 150 179 208 325
Noise level (dB)  Below 70 dB(A) Below 80 dB(A)

Please note:

1: The above cooling capacity is based on the condition of ambient temperature 35°C, outlet oil temperature 35°C with oil type ISO VG32.

2: Please contact us for special applications - we will be able to advise on the best unit for your specific application.

3: Different voltages are also avaiable, please specify when you make contact.

4: Design and specification are subject to change without prior notice.

5: The oil tank is an optional components, please specifiy if this is required when making your enquiry.
