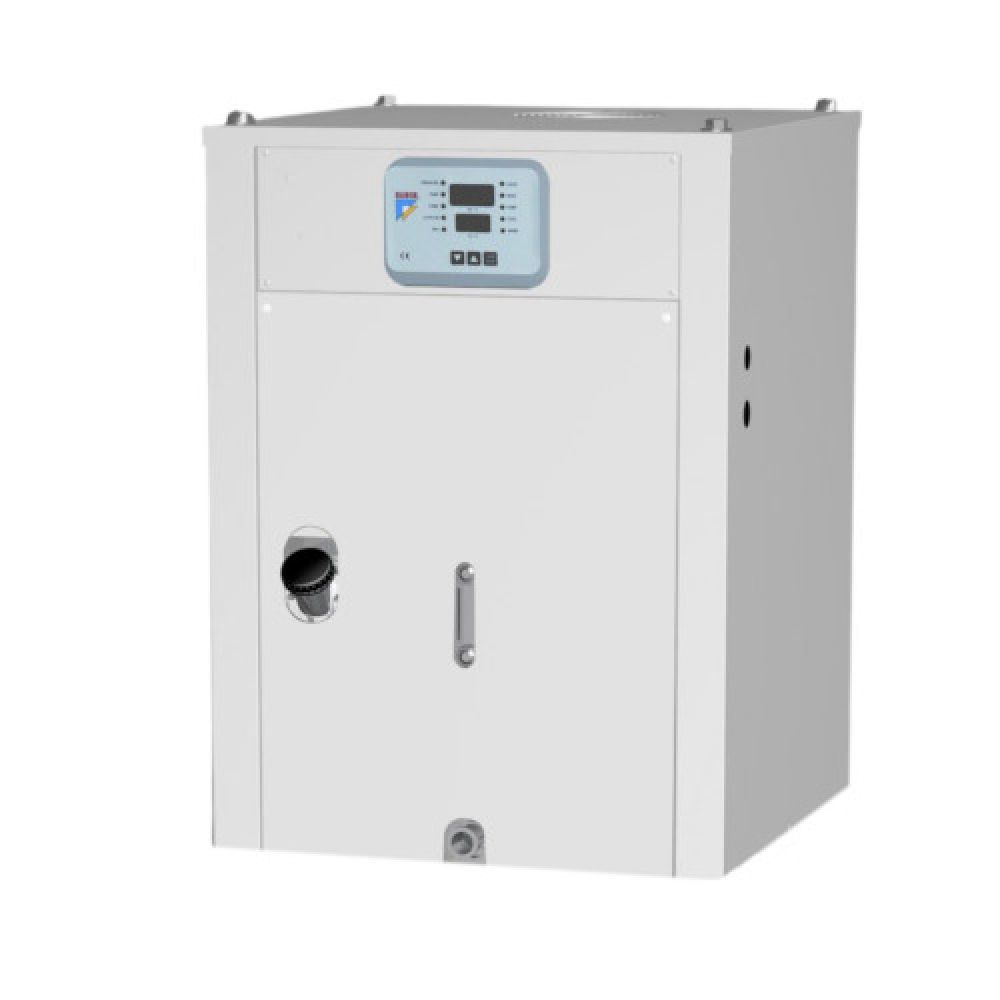

Habor HEW Series Water Cooler

Habor

View all specifications

HEW Series

Water Heat Exchanger

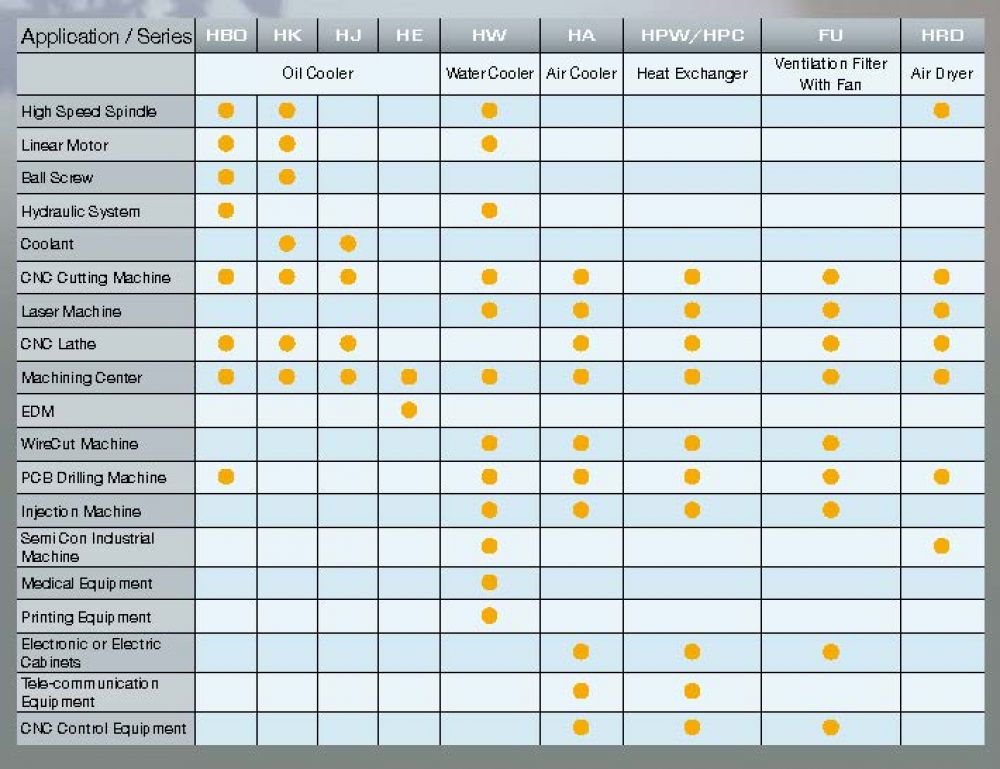

Habor refrigeration chillers (utilised in both oil and water-cooling installations) are manufactured in Taiwan. The Habor range of chillers is broad and can be found in multiple applications including, precision CNC machine tools & spark errosion processes (for cooling their hydraulic systems and cooling of cutting fluids.

The Habor chillers have been precision engineered to deliver accurate fluid temperature control for optimal performance and reliability.

The HEW range is a dedicated water heat exchanger unit.

Features:

Precision temperature control for industrial machines to improve production efficiency.
Stainless steel construction for use with water
Multi safety features for safe operation
No requirement for cooling tower
No requirement for heat exhaust

Looking to repair your chiller?

We offer a comprehensive range of spare parts to repair your existing Habor chiller unit . Please call +44(0)1172 130042 or Email with your chiller part and serial number for availability.

Downloads & Datasheets

Habor HEW Catalague

Model Number		HEW-800PTS	HEW-2RPTS	HEW-3RPTS
Cooling capacity KCAL/H. 50/60Hz		3000	6000	9000
Cooling capacity W. 50/60Hz		3500	7000	10500
Cooling capacity BTU/H. 50/60Hz		12000	24000	36000
Temperature controller: A		Fixed temperature control type (setting range 10~40°C)
Temperature controller: B		Differential temperature control type (tacing ambient/machine body temperature (setting range -9.9~+9.9°C)
Power source		3Ø 200~230V 5060Hz
Pump	W	750	750	2650
	Max flow rate (l/min)	50	50	100
	Max liquid lift (M)	40	40	50
Min flow requirement of cooling water (l/min)		40
Liquid inlet diameter (PT)		3/4"
Liquid outlet diameter (PT)		3/4"
Cooling water inlet diameter (PT)		3/4"
Cooling water outlet diameter (PT)		3/4"
Water tank capacity		45 Litres
Dimensions WxDxH (mm)		490x500x795
Weight (KG)		90	98	100
Noise level (dB)		Below 70 dB (A)	Below 80 dB (A)

Please note: The aboe cooling capacity is based on the condition of liquid temperature 22°C and cooling water source of 10°C.
