Habor HWV Series Water Cooler

Habor
Contact us for current availability
View all specifications

HWV Series

Water Heat Exchanger

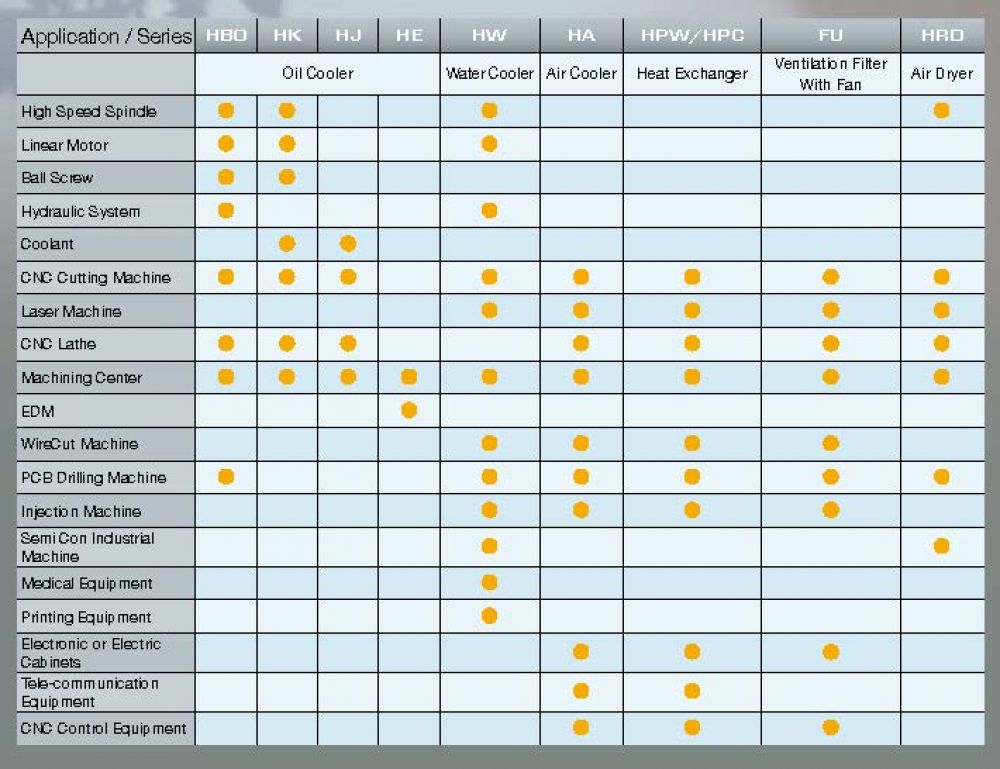

Habor refrigeration chillers (utilised in both oil and water-cooling installations) are manufactured in Taiwan. The Habor range of chillers is broad and can be found in multiple applications including, precision CNC machine tools & spark errosion processes (for cooling their hydraulic systems and cooling of cutting fluids.

The Habor chillers have been precision engineered to deliver accurate fluid temperature control for optimal performance and reliability.

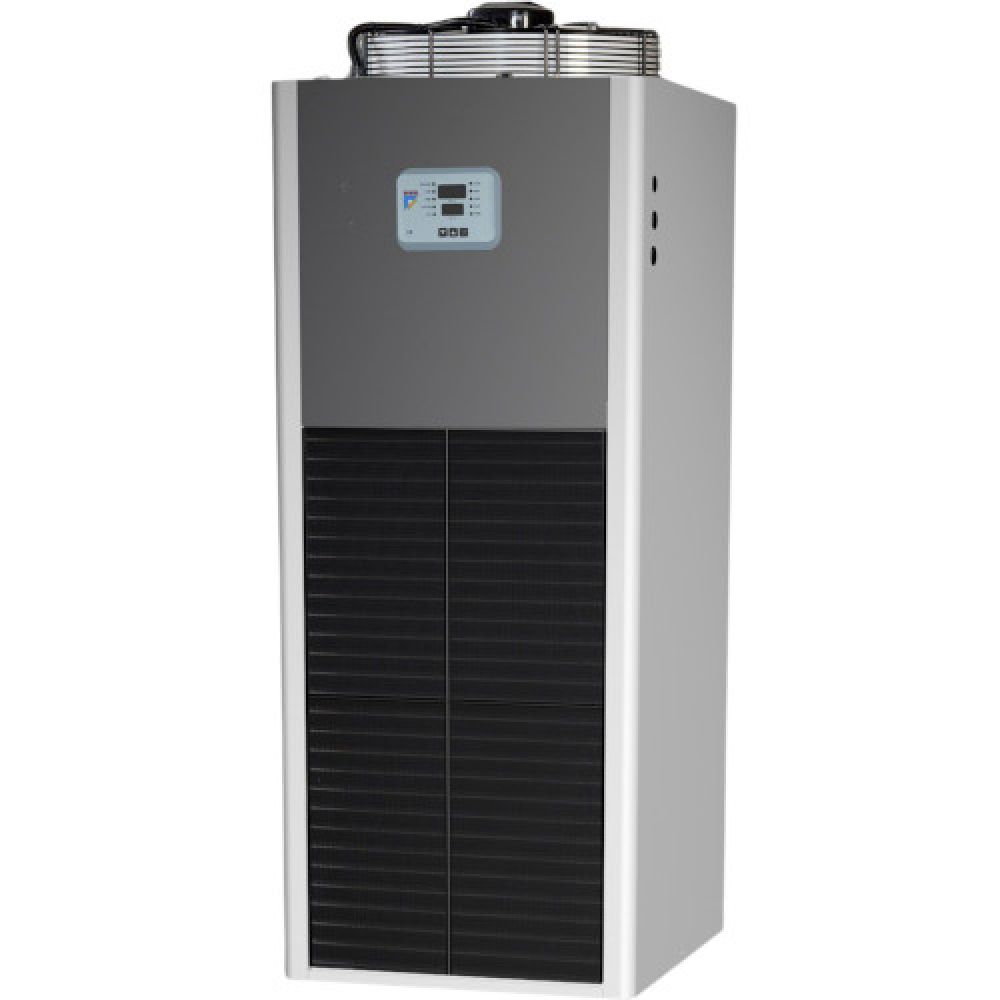

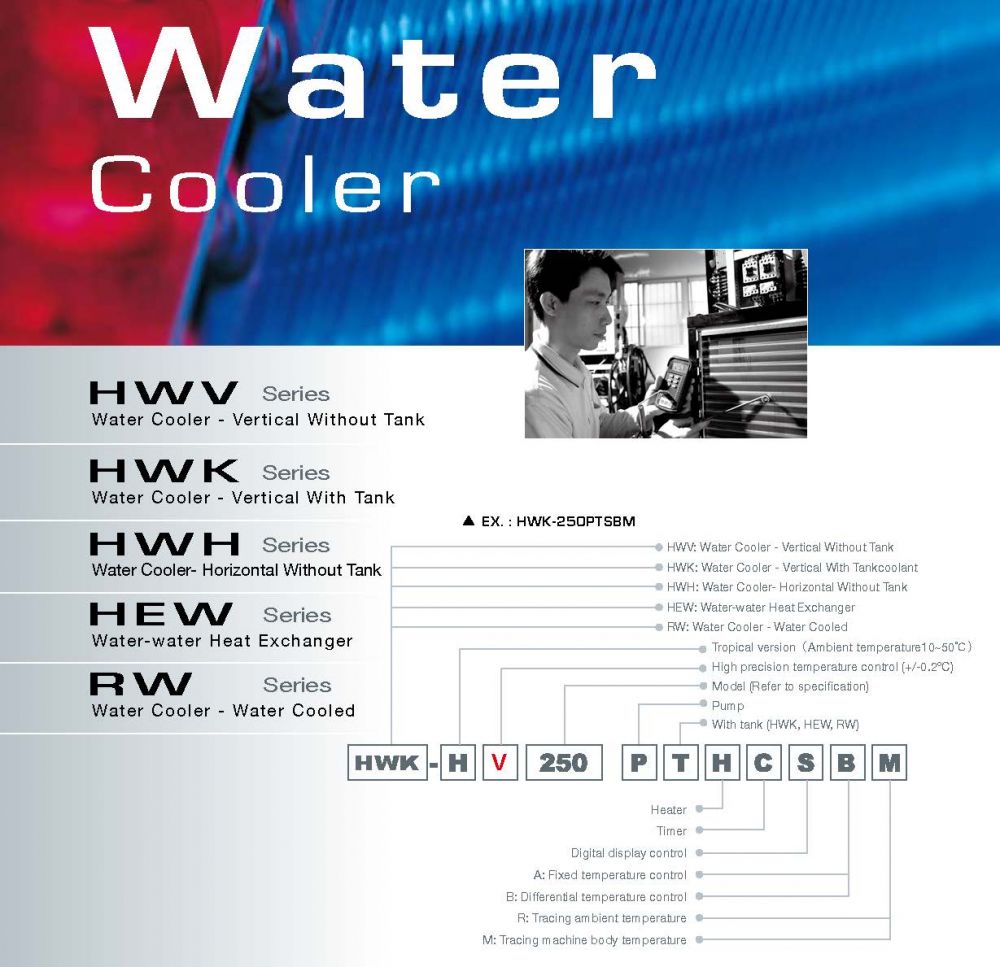

The HWV range is a vertical water heat exchanger unit without tank.

Features:

  • Precision temperature control for industrial machines to improve production efficiency.
  • Stainless steel construction for use with water
  • Multi safety features for safe operation
  • No requirement for cooling tower
  • No requirement for heat exhaust

Looking to repair your chiller?

We offer a comprehensive range of spare parts to repair your existing Habor chiller unit . Please call +44(0)1172 130042 or Email with your chiller part and serial number for availability.

Downloads & Datasheets

Model Number HWV-250PS HWV-400PS HWV-600PS HWV-750PS HWV-900PS HWV-1000PS HWV-2RPS HWV-3RPS HWV-4RPS HWV-5PS

Cooling capacity

KCAL/H. 50/60Hz 840/1000 1400/1500 1700/2100 2600/3000 3200/3800 3750/4500 5000/6000 7500/9000 10000/12000 12500/15000
W. 50/60Hz 980/1170 1630/1750 1970/2450 2900/3500 3700/4400 4350/5250 5820/6980 8720/10470 11630/13960 14540/17450
BTU/H. 50/60Hz 3360/4000 5600/6000 6700/8300 10000/12000 12800/15200 15000/18000 20000/24000 30000/36000 40000/48000 50000/60000
Temperature controller

A Fixed temperature control type (Setting range 10~40°C)
Differential temperature control type (tracing ambient.machine body temperature, setting range  -9.9~+9.9°C
Use range

Ambient Temp °C 10~40°C (Standard)
Liquid Temp °C 10~30°C
Power source 3Ø 200~230V 5060Hz
Motor Compressor 478 845 845 1185 1500 1700 2480 3350 4400 5500
Fan 50 180 350 500
Pump 57 80 750 1080
Pump flow rate (L/min) 50Hz 27 32 58 100
60Hz 31 38 75 150
Max lift from pump (L/min) 50Hz 3.1 3.8 28
60Hz 4.3 5.4 40
Piping diameter

Inlet PT 1/2" PT 1" PT 3/4"
Oultlet PT 1/2" PT 1" PT 3/4"
Dimension WxDxH (mm)  360x472x687 425x500x1100 480x580x1340 500x732x1295 554x660x1535 1085x780x1400
Weight (kg) 51 73 73 75 75 105 152 180 253
Noise level (dB)  Below 70 dB(A) Below 80 dB(A)

Please note:  The cooling capacity stated above is based on teh condition of liquid temperature 22°C, Ambient temperature of 32°C and 60Hz.
