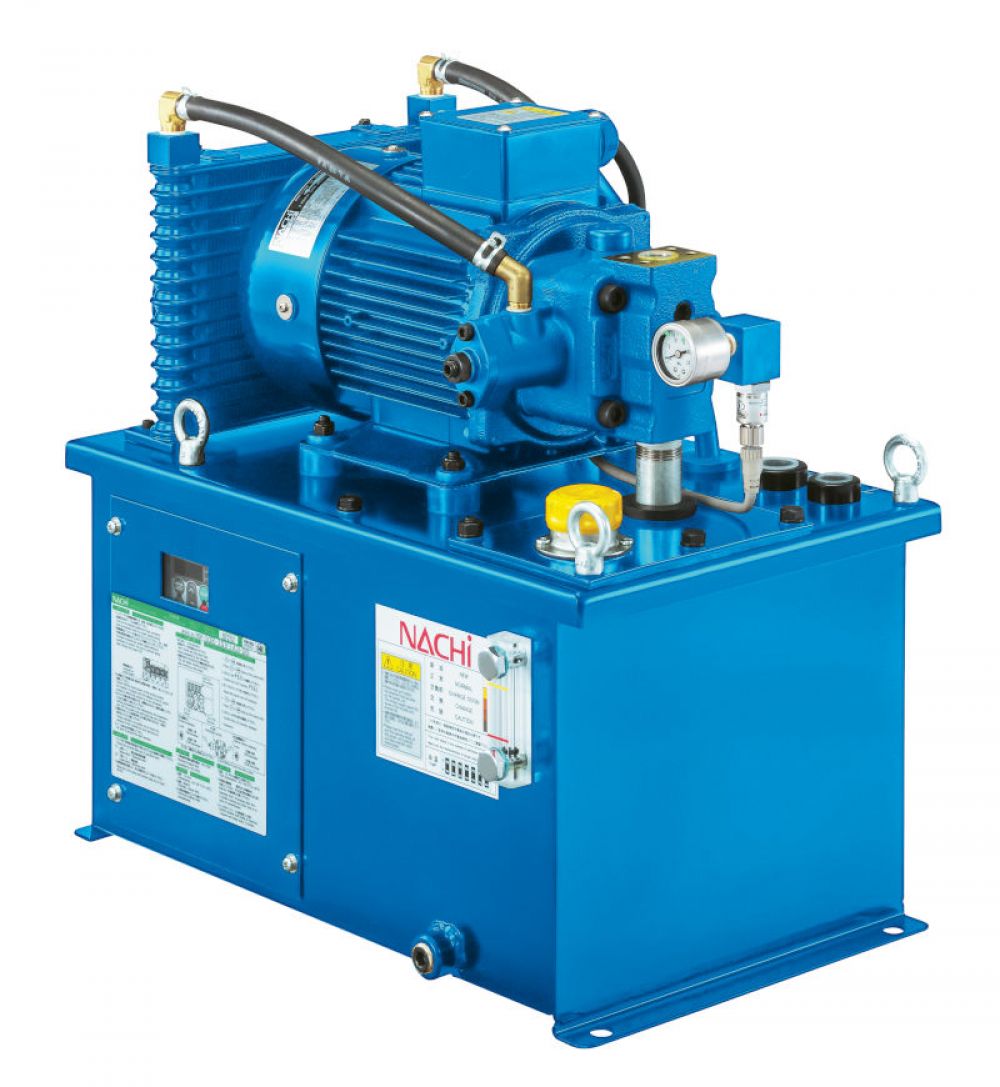

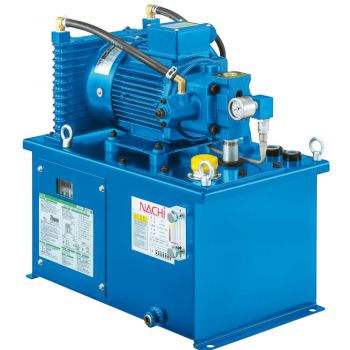

Nachi NSPi-20E-15V1A*-21

Nachi
Contact us for current availability
View all specifications

Nachi have responded to the market demands for an Environmentally friendly hydraulic power pack solution. Their NSPi hits the bullseye, with energy savings of up to 69% compared to a conventional motor driven hydraulic power pack! To give some more impressive and meaningful environmental benefits, based on a typical annual usage, the Nachi NSPi will reduce C02 emissions by up to 2 tonnes (approximately 42%) compared to a conventional motor driven hydraulic power pack. - that's the equivalent to 2 hectares of forest!

Utilising their proven high quality and performance components, the NSPi can deliver consistent and accurate performance at an incredibly low noise level, just 53 dB (A)

The NSPi comes in various sizes, with pressure options ranging from 15 to 80 bar and flow ranges of 14 to 28 litres per min.

For customers using an existing Nachi NSP hydraulic power pack, the switch to their NSPi is a direct replacement - make the switch today and start saving energy straight away!

Product Features

  • Incredible Energy Saving Technology
  • Quiet Operation
  • Available for either 200v or 400v, 3 phase power supply operation
  • Compact Design
  • Low Heat Output
  • Self-Regulating Invertor Drive - Responds Automatically Based on Flow Demand
  • Simple Installation and Operation
  • Built in Cooling Fan

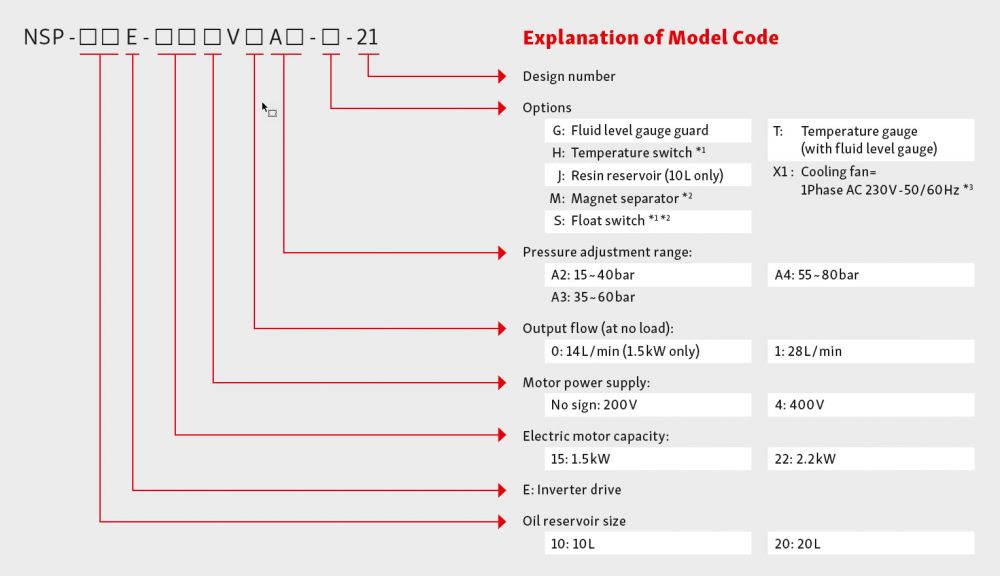

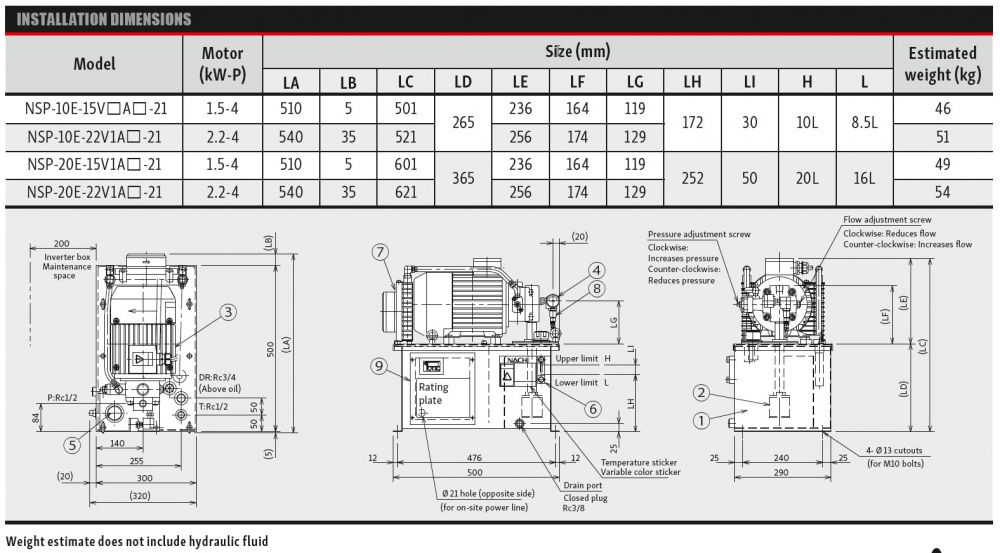

Model Code Motor Capacity (KW-P)  Tank Capacity Operating Pressure Options Maximum Flow Rate Weight
NSPi-10E-15V*A*-21  1.5 kw 10 Litres A2: 15 ~ 40 bar Code 0: 14 L/Min (1.5kw only)  46 kg
A3: 35 ~ 60 bar
A4: 55 ~ 80 bar Code 1: 28 L/Min
NSPi-10E-22V1A*-21 2.2 kw 10 Litres A2: 15 ~ 40 bar Code 0: 14 L/Min (1.5kw only)  51 kg
A3: 35 ~ 60 bar
A4: 55 ~ 80 bar Code 1: 28 L/Min
NSPi-20E-15V1A*-21 1.5 kw 20 Litres A2: 15 ~ 40 bar Code 0: 14 L/Min (1.5kw only) 49 kg
A3: 35 ~ 60 bar
A4: 55 ~ 80 bar Code 1: 28 L/Min
NSPi-20E-22V1A*-21 2.2 kw 20 Litres A2: 15 ~ 40 bar Code 0: 14 L/Min (1.5kw only) 54 kg
A3: 35 ~ 60 bar
A4: 55 ~ 80 bar Code 1: 28 L/Min
