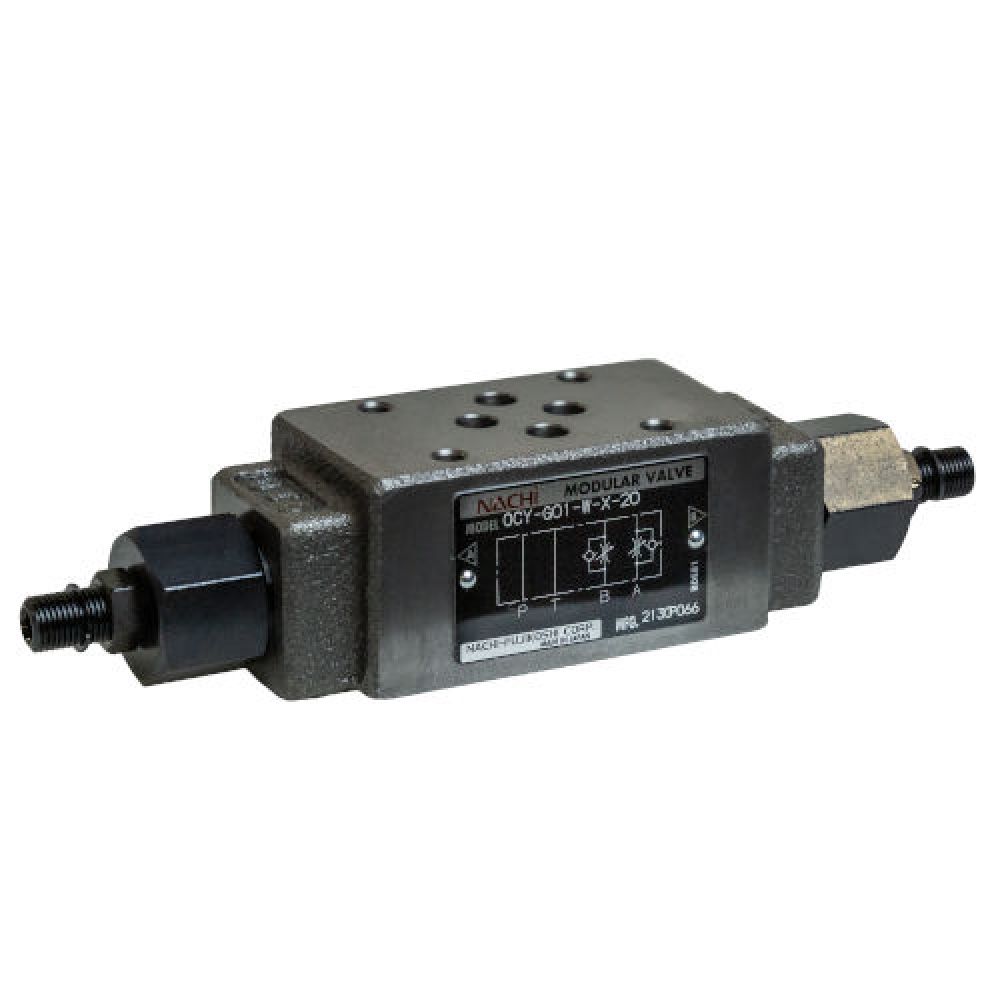

Nachi's hydraulic equipment plays an essential role in power and controlling in the construction machine industry. The Nachi OCY-G01 is a flow control modular valve (with check valve) used to control actuator speed, amongst various other flow control applications. There is a wide range of models available for A and B port control, A or B port control, and P or T port control. The G01 designation corresponds to the mounting surface which accords to the ISO 4401 CETOP 03 (NG6) standards, allowing for quick assembly using tie-rods or bolts.
Nachi Modular Flow Control valves are also available in different mounting sizes including G03 (CETOP 05) and G04 (CETOP 07), allowing for higher maximum values of both working pressure and flow rate.
Zeus Hydratech keep a selection of the Nachi OCY-G01 Flow Control valves in stock- Contact us today to place your order for immediate dispatch. Email us or call on +44 (0) 1172130042.
| Model No. | OCY-G01-P-20 | OCY-G01-W/A/B-X-20 | OCY-G01-W/A/B-Y-20 |
|---|---|---|---|
| Nominal Diameter (size) | 1/8 | ||
| Maximum Working Pressure (bar) | 250 | ||
| Maximum Flow Rate (l/min) | 50 | ||
| Check Valve Cracking Pressure (bar) | 0.4 | 0.8 | 0.8 |
| Weight (kg) | 1.0 | 1.2-1.3 | 1.2-1.3 |
| Gasket Surface Dimensions | ISO 4401-03-02-0-05 | ||
