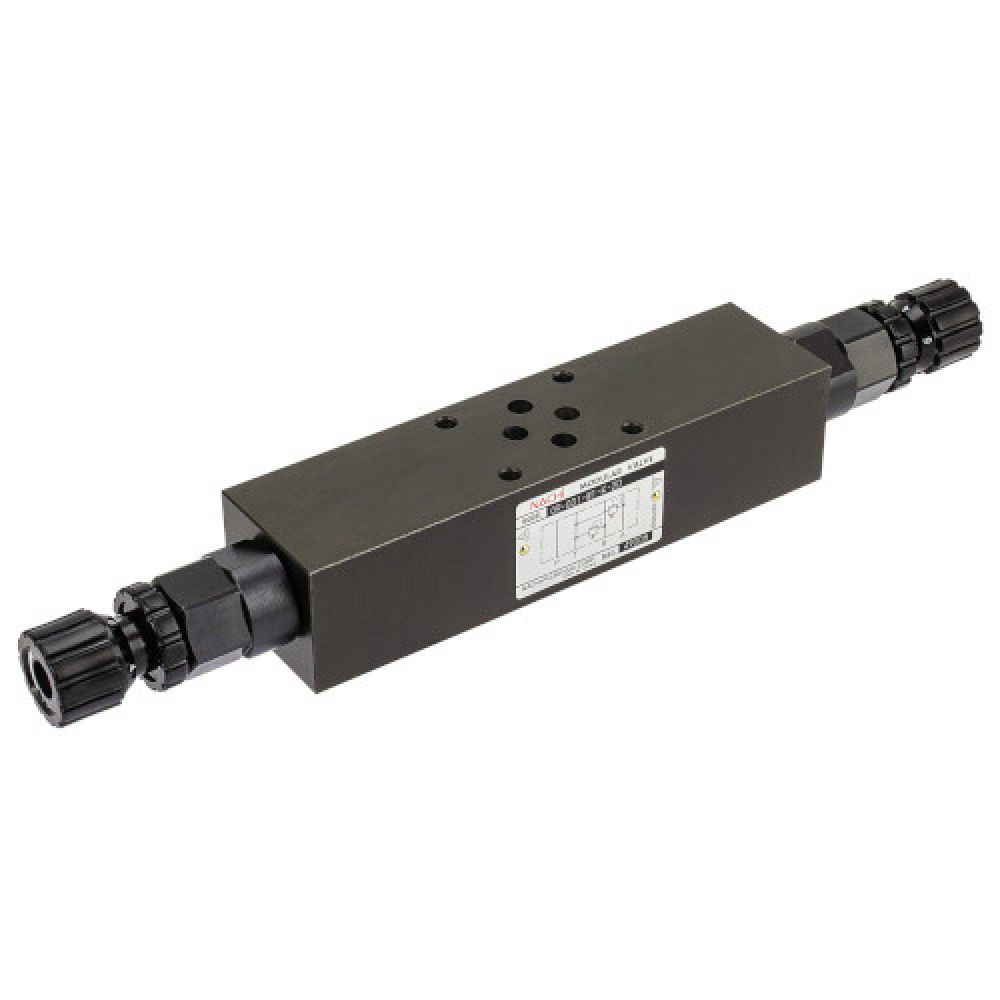

Nachi's hydraulic equipment plays an essential role in power and controlling in the construction machine industry. The Nachi OR-G01 is a standard pressure relief modular valve. Pressure relief modular valves provide maximum pressure control for your hydraulic circuit The OR-G01 is available with P, A, B or A & B port control. The G01 designation corresponds to the mounting surface which accords to the ISO 4401 CETOP 03 (NG6) standards, allowing for quick assembly using tie-rods or bolts.
Nachi Modular Pressure relief valves are also available in different mounting sizes including G03 (CETOP 05), and G04 (CETOP 07) allowing for higher maximum values of both working pressure (up to 350 bar) and flow rate (up to 300 l/min).
Zeus Hydratech keep a selection of the Nachi OR-G01 Pressure Relief valves in stock- Contact us today to place your order for immediate dispatch. Email us or call on +44 (0) 1172130042.

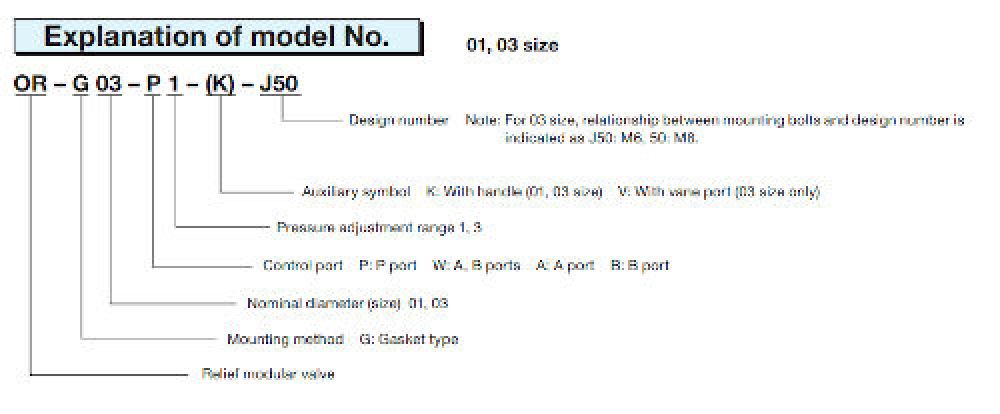

| Model No. | OR-G01-P1/P3-20 | OR-G01-W1/W3-20 | OR-G01-A1/A3-21 | OR-G01-B1/B3-21 |
|---|---|---|---|---|
| Nominal Diameter (size) | 1/8 | |||
| Maximum Working Pressure (bar) | 250 | |||
| Maximum Flow Rate (l/min) | 50 | |||
| Pressure adjustment range (bar) | * to 70 / 35 to 250 | * to 70 / 35 to 250 | * to 70 / 35 to 250 | * to 70 / 35 to 250 |
| Weight (kg) | 1.5 | 2.3 | 1.6 | 1.6 |
| Gasket Surface Dimensions | ISO 4401-03-02-0-05 | |||
* See page D-16 in the datasheet for the Flow Rate / Low Pressure characteristics.
