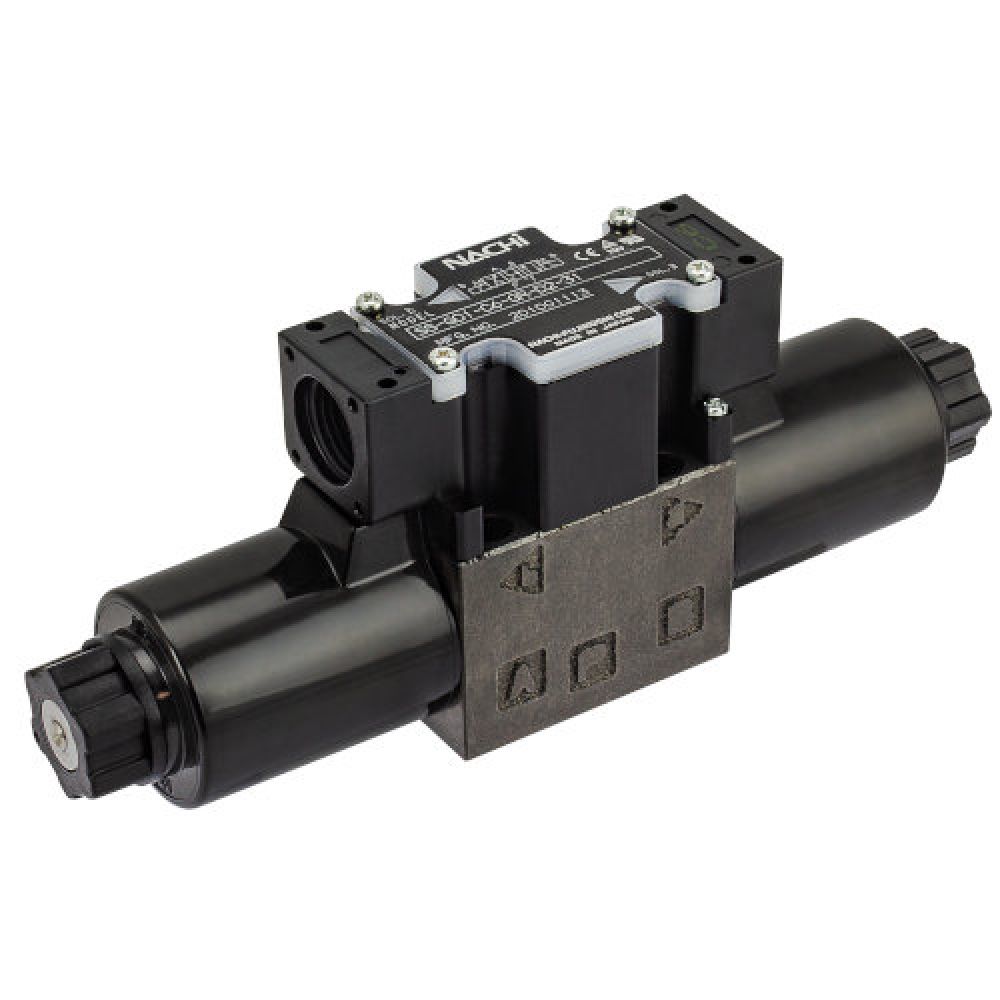

Nachi SS - Wet Type Solenoid Operated Directional Control Valve (G01)

Nachi

In stock - order today

View all specifications ~ scroll down to find the part you need ~

Nachi are a world-class manufacturer of pumps, valves, flow controls, hydraulic power units and other products. Known not only for product excellence but for our competitive pricing and product availability.

Very Long Life

The movable iron core of the SA wet type solenoid is immersed in oil, which keeps it lubricated and cushions it from impact and vibration, ensuring very long life.

Low Switching Noise

The wet-type solenoid valve provides very low core switching noise, for quiet operation

Easy coil replacement

A plug-in type coil enables one-touch coil replacement

Backward Compatibility

Wide-ranging backward compatibility makes it simple to replace previous valve models with this one. Combining this valve with a modular valve contributes to the compact configuration of the overall device.

Global support (G01 size)

Meets overseas safety standards (CE, UL, and CSA). It can be safely used anywhere in the world.

High pressure, large capacity, with minimal pressure loss

Comprehensive fluid reaction force compensation and low pressure compensation construction provide large capacity and low pressure loss.

G01 (CETOP 03)- Max Pressure: 350 bar; Max Flow: 100 l/min
G03 (CETOP 05)- Max Pressure: 350 bar; Max Flow: 160 l/min

Easy connections

A special wiring box provides a COM port and indicator light as standard for simple wiring and maintenance.

Downloads & Datasheets

Nachi - SS - Wet Type Solenoid Operated Directional Control Valve - Datasheet

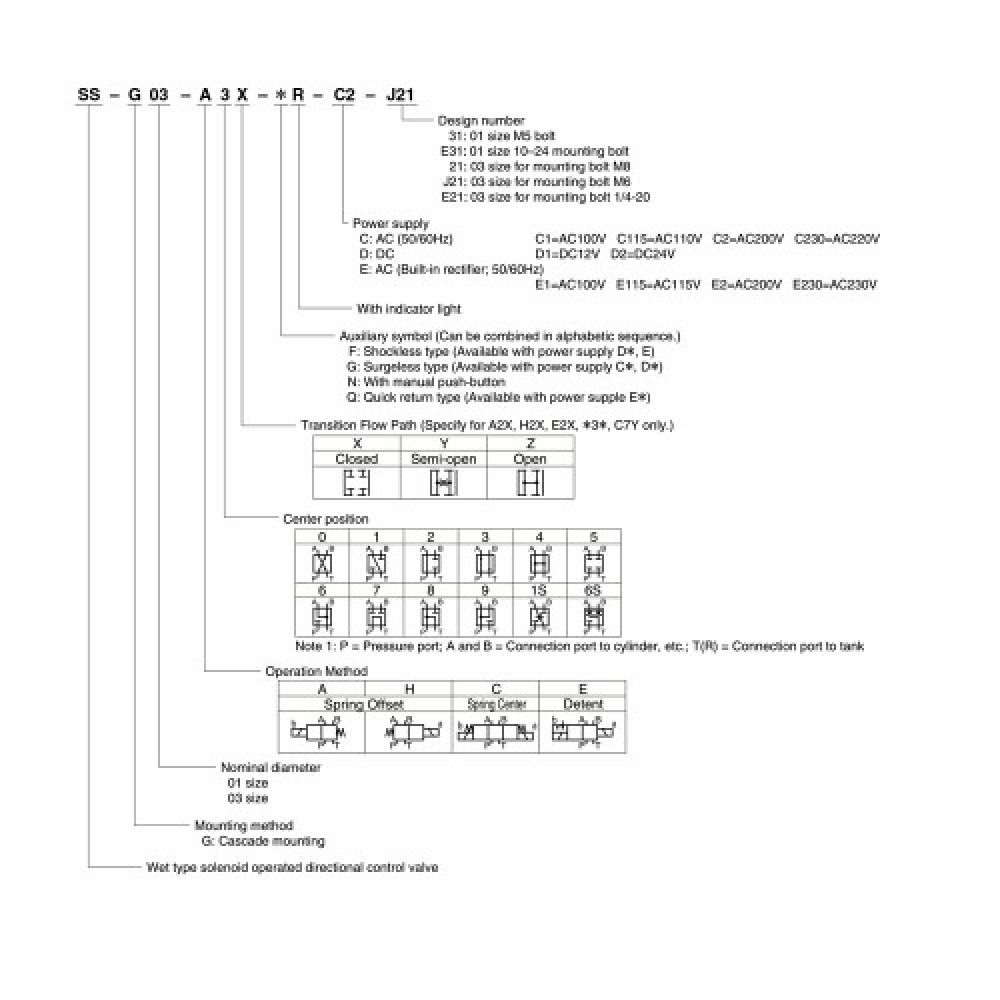

Model Type	Standard Max Flow	Standard Max Pressure	Shockless Max Flow	Shockless Max Pressure
-A2X-	30 L/min	35 MPa	30 L/min	25 MPa
-H2X-	30 L/min	35 MPa	30 L/min	25 MPa
-E2X-	30 L/min	35 MPa	30 L/min	25 MPa
-A3X-	80 L/min	35 MPa	50 L/min	25 MPa
-H3X-	80 L/min	35 MPa	50 L/min	25 MPa
-E3X-	100 L/min	35 MPa	50 L/min	25 MPa
-A3Z-	65 L/min	35 MPa	50 L/min	25 MPa
-H3Z-	65 L/min	35 MPa	50 L/min	25 MPa
-E3Z-	65 L/min	35 MPa	50 L/min	25 MPa
-A4-	50 L/min	35 MPa	50 L/min	25 MPa
-H4-	50 L/min	35 MPa	50 L/min	25 MPa
-A5-	100 L/min	35 MPa	50 L/min	25 MPa
-H5-	100 L/min	35 MPa	50 L/min	25 MPa
-C2-	100 L/min	35 MPa	50 L/min	25 MPa
-C5-	100 L/min	35 MPa	50 L/min	25 MPa
-C9-	100 L/min	35 MPa	50 L/min	25 MPa
-C1S-	100 L/min	35 MPa	50 L/min	25 MPa
-C6S-	100 L/min	35 MPa	50 L/min	25 MPa
-C1-	65 - 80 L/min	35 MPa	50 L/min	25 MPa
-C6-	50 L/min	35 MPa	50 L/min	25 MPa
-C4-	50 L/min	35 MPa	50 L/min	25 MPa
-C7Y-	50 L/min	35 MPa	40 L/min	25 MPa
-C8-	50 L/min	35 MPa	40 L/min	25 MPa
