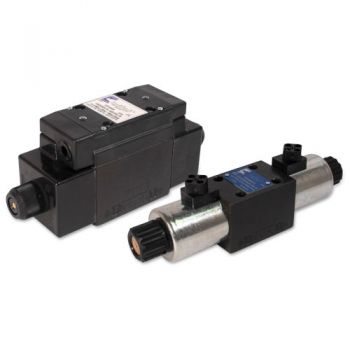

Nachi SS - Wet Type Solenoid Operated Directional Control Valve (G03)

Nachi
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Nachi are a world-class manufacturer of pumps, valves, flow controls, hydraulic power units and other products. Known not only for product excellence but for our competitive pricing and product availability.


Very Long Life

The movable iron core of the SA wet type solenoid is immersed in oil, which keeps it lubricated and cushions it from impact and vibration, ensuring very long life.


Low Switching Noise

The wet-type solenoid valve provides very low core switching noise, for quiet operation


Easy coil replacement

A plug-in type coil enables one-touch coil replacement


Backward Compatibility

Wide-ranging backward compatibility makes it simple to replace previous valve models with this one. Combining this valve with a modular valve contributes to the compact configuration of the overall device.


Global support (G01 size)

Meets overseas safety standards (CE, UL, and CSA). It can be safely used anywhere in the world.


High pressure, large capacity, with minimal pressure loss

Comprehensive fluid reaction force compensation and low pressure compensation construction provide large capacity and low pressure loss.

  • G01 : 35MPa{357kgf/cm2} 100r/min
  • G03 : 35MPa{357kgf/cm2} 160r/min

Easy connections

A special wiring box provides a COM port and indicator light as standard for simple wiring and maintenance.




Model Type Standard Max Flow Standard Max Pressure Shockless Max Flow Shockless Max Pressure
 -A2X-  40 - 85 L/min  35 MPa  85 L/min  25 MPa
 -H2X-  40 - 85 L/min  35 MPa  85 L/min  25 MPa
 -E2X-  85 L/min  35 MPa  85 L/min  25 MPa
 -A3X-  130 - 160 L/min  35 MPa  130 L/min  25 MPa
 -H3X-  130 - 160 L/min  35 MPa  130 L/min  25 MPa
 -E3X-  130 - 160 L/min  35 MPa  130 L/min  25 MPa
 -A3Z-  130 - 160 L/min  35 MPa  130 L/min  25 MPa
 -H3Z-  130 - 160 L/min  35 MPa  130 L/min  25 MPa
 -E3Z-  130 - 160 L/min  35 MPa  130 L/min  25 MPa
 -A4-  130 - 160 L/min  35 MPa  130 L/min  25 MPa
 -H4-  130 - 160 L/min  35 MPa 130 L/min  25 MPa
 -A5-  130 - 160 L/min  35 MPa 130 L/min  25 MPa
 -H5-  130 - 160 L/min  35 MPa 130 L/min  25 MPa
 -C2-  130 - 160 L/min  35 MPa 130 L/min  25 MPa
 -C5-  130 - 160 L/min  35 MPa 130 L/min  25 MPa
 -C9-  130 - 160 L/min  35 MPa 130 L/min  25 MPa
 -C1S-  130 - 160 L/min  35 MPa 130 L/min  25 MPa
 -C6S-  130 - 160 L/min  35 MPa 130 L/min  25 MPa
 -C1-  130 - 160 L/min  35 MPa 130 L/min  25 MPa
 -C6-  130 - 160 L/min  35 MPa 130 L/min  25 MPa
 -C4-  130 - 160 L/min  35 MPa 130 L/min  25 MPa
 -C7Y-  70 - 100 L/min  25 MPa  85 L/min  25 MPa
 -C8-  70 - 100 L/min  25 MPa  85 L/min  25 MPa
