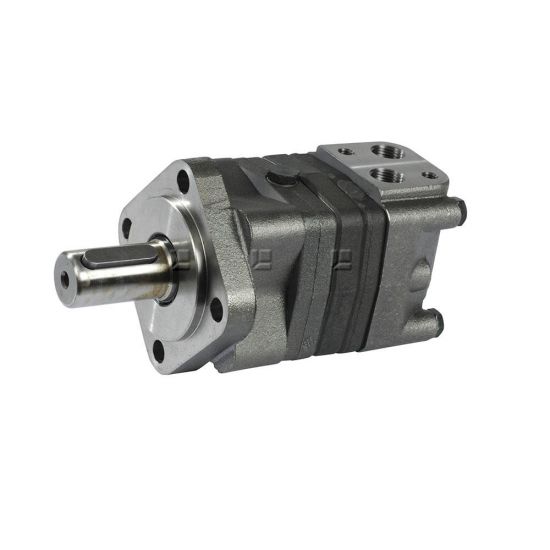

Sauer Danfoss OMS, OMSS, OMSST & OMSW - Orbital Motors

Sauer Danfoss
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Made by Sauer Danfoss a world leader within production of low speed orbital motors with high torque. Appealing to a large number of applications and a part of the program is characterised by motors that can be adapted to the following applications:


  •    Construction
  •    Agricultural
  •    Material handling & Lifting
  •    Forestry
  •    Lawn & turf equipment
  •    Special purpose
  •    Machine tools & stationary
  •    Marine equipment


We can offer more than 3,000 different orbital motors, categorised in types, variants and sizes (including different shaft versions, motor sizes and torques).


Characteristic features:

  •    Smooth running over the entire speed range
  •   Constant operating torque over a wide speed range
  •   Long life under extreme operating conditions
  •   High return pressure without the use of drain line (High pressure shaft seal)
  •   High efficiency
  •   High starting torque
  •   Robust and compact design
  •   High radial and axial bearing capacity
  •   For applications in both open and closed loop hydraulic systems
  •   Suitable for a wide variety of hydraulics fluids

Continuous Values

Model Geometric Displacement Max Speed Max Torque Max Output Max Pressure Drop Max Oil Flow
OMS 80 80.5 cm³  810 min¹  240 Nm 15.5 Kw  210 bar 65 l/min
OMS 100 100.0 cm³  750 min¹  305 Nm 18.0 Kw  210 bar 75 l/min
OMS 125 125.7 cm³  600 min¹  375 Nm  18.0 Kw  210 bar 75 l/min
OMS 160 159.7 cm³  470 min¹  490 Nm 16.5 Kw  210 bar 75 l/min
OMS 200 200.0 cm³  375 min¹  610 Nm 16.5 Kw  210 bar 75 l/min
OMS 250 250.0 cm³  300 min¹  720 Nm  14.5 Kw  200 bar 75 l/min
OMS 315 314.9 cm³  240 min¹  825 Nm  15.0 Kw  200 bar 75 l/min
OMS 400 393.0 cm³  190 min¹  865 Nm  11.0 Kw  160 bar 75 l/min
OMS 500 488.0 cm³  155 min¹  850 Nm  9.0 Kw  120 bar 75 l/min

Intermittent Values

Model Geometric Displacement Max Speed Max Torque Max Output Max Pressure Drop Max Oil Flow
OMS 80 80.5 cm³  1000 min¹  310 Nm 19.5 Kw  295 bar 80 l/min
OMS 100 100.0 cm³  900 min¹  390 Nm 22.5 Kw  295 bar 90 l/min
OMS 125 125.7 cm³  720 min¹  490 Nm  22.5 Kw  295 bar 90 l/min
OMS 160 159.7 cm³  560 min¹  600 Nm 23.0 Kw  280 bar 90 l/min
OMS 200 200.0 cm³  450 min¹  720 Nm 22.0 Kw  270 bar 90 l/min
OMS 250 250.0 cm³  360 min¹  870 Nm  18.0 Kw  270 bar 90 l/min
OMS 315 314.9 cm³  285 min¹  1000 Nm  17.0 Kw  260 bar 90 l/min
OMS 400 393.0 cm³  230 min¹  990 Nm  12.5 Kw  210 bar 90 l/min
OMS 500 488.0 cm³  185 min¹  990 Nm  10.5 Kw  210 bar 90 l/min
