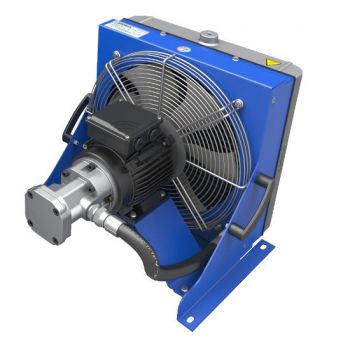

Silent 15 EVO 2, Emmegi Air Blast Cooler, 10 LPM

Emmegi
Contact us for current availability
View all specifications

Silent EVO2 Series Heat Exchanger Units

Designed to connect directly to your hydraulic power pack oil reservoir, the EVO2, offline air/oil coolers offer superior noise level performance.

Utilising a gear pump driven by the cooler motor, oil is automatically circulated via the cooler and delivered back the hydraulic power pack reservoir.  EVO2 offers an incredibly high efficiency heat exchanger solution with whisper quiet operation.


EVO2 Typical Applications:

  • Elevators and lifts
  • Machine Tools (CNC and lathes)
  • Hydraulic presses
  • Hydraulic Installations
  • Industrial Machinery

Compatible Fluids:

  • Mineral oils: HLP and HL
  • Consult us for any other fluids to confirm compatibility

Operational Criteria:

  • Operating pressure: 6 bar
  • Viscosity range: 20 - 320 cSt
  • Max operating temperature: 93°C

Part Number SILENT 15 EVO 2 SILENT 25 EVO 2 SILENT 35 EVO 2 SILENT 45 EVO 2
Voltage 230-400V 50Hz / 208-230V 60Hz  230-400V 50Hz / 208-230V 60Hz 230-400V 50Hz / 208-230V 60Hz 230-400V 50Hz / 208-230V 60Hz
KW (50/60Hz) 0.37 / 0.44 0.70 / 0.84 0.80 / 0.92 1.1 / 1.32
Amps 2.48 / 1 3.54 / 1.89 4.1 / 1.9 4.8 / 2.4
Revolution Speed 1435 / 1722 rpm  969 / 1163 rpm 1450 / 1740 rpm 1456 / 1747 rpm
IP Rating 55  55 55 55
Airflow (m3/h) 617 1367 2165 4585
Weight (kg) 27 kg  30 kg 32 kg 36 kg
Part Number SILENT 55 EVO 2 SILENT 65 EVO 2 SILENT 75 EVO 2
Voltage 230-400V 50Hz / 208-230V 60Hz  230-400V 50Hz / 208-230V 60Hz 230-400V 50Hz / 208-230V 60Hz
KW 1.5 / 1.8 4 / 4 4 / 4
Amps 9.6 / 3.4 17.8 / 8.2 17.8 / 8.2
Revolution Speed 1435 / 1722 rpm  969 / 1163 rpm 1450 / 1740 rpm
IP Rating 55  55 55
Airflow (m3/h) 5110 9287 9500
Weight (kg) 51 kg  115 kg 125 kg
