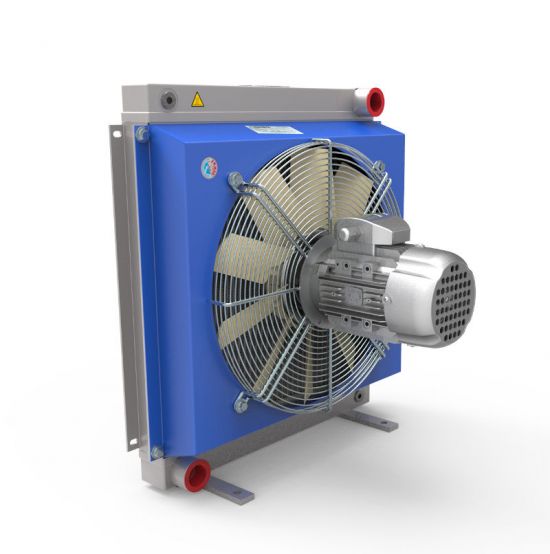

HPA 72 A035700400B#1 Emmegi Air Blast Cooler, AC Electric Motor

Emmegi
Contact us for current availability
View all specifications

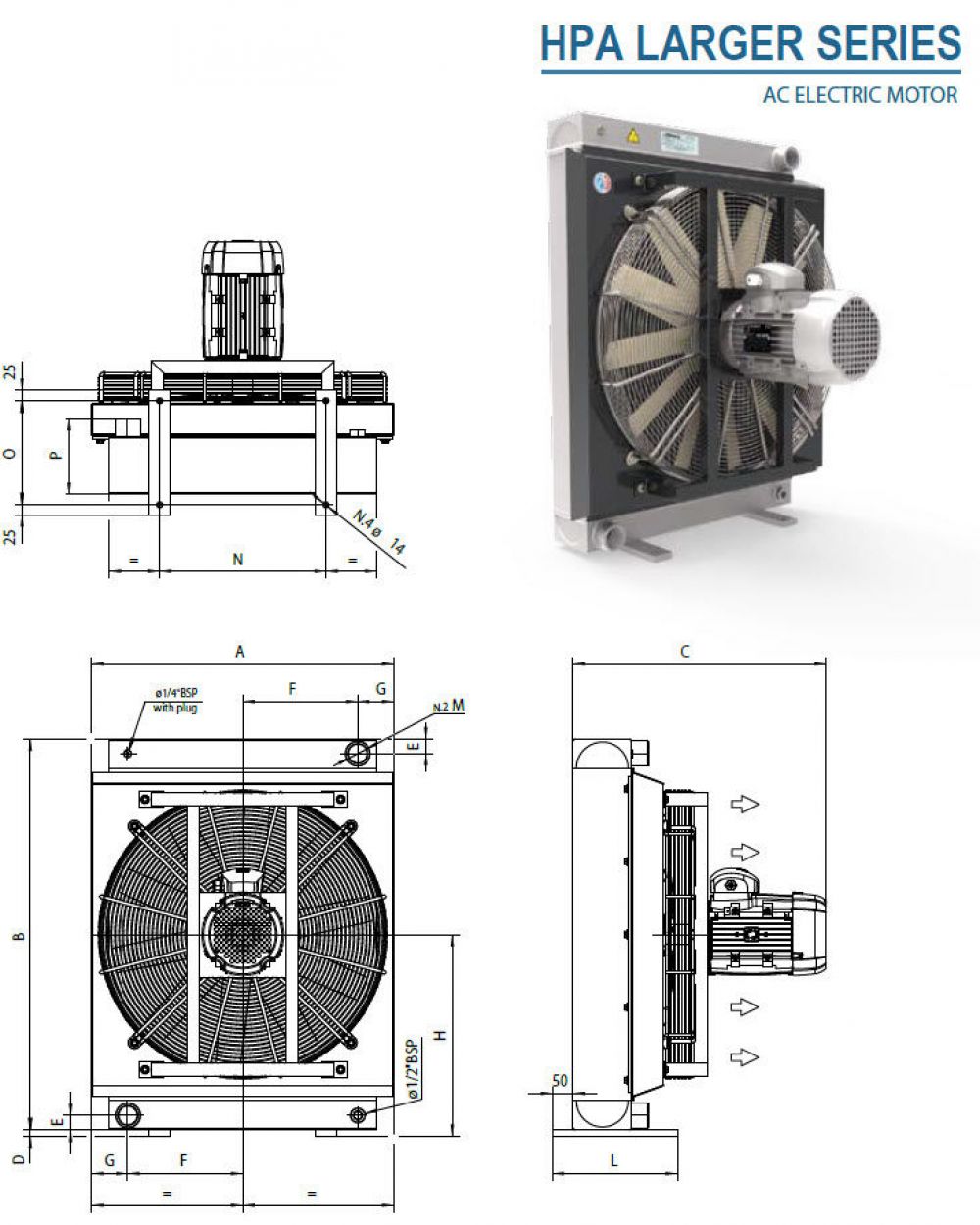

HPA - AC Motor Fan Driven Heat Exchanger Units

Featuring rugged bar and plate construction, the HPA range of AC motor driven fans provide a high performance cooling solution in a compact design.

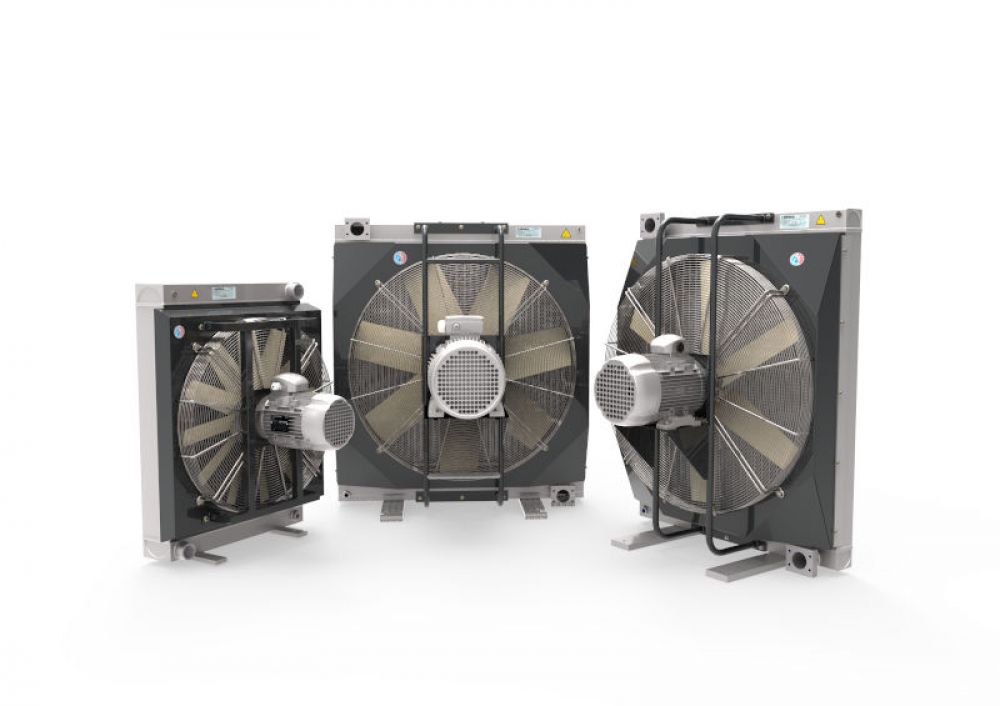

HPA Larger Series Range:

  • Up to 12 kW/°C cooling capacity
  • 100 - 1000 litres per min flow capability
  • Internal Bypass Options

Standard Features:

  • Low fouling, non louvered air fins
  • Totally enclosed motors
  • Additional ports for "plug-and-play" temperature control options
Downloads & Datasheets

Part Number HPA 72 A035700400B#1 HPA 135 A03750A400B#1 HPA 180 A03280A400B#1 HPA 255 A03790B400B#1
Voltage 230-400V 50Hz / 265-460V 60Hz  230-400V 50Hz / 265-460V 60Hz 400-690V 50Hz / 460-795V 60Hz 400-690V 50Hz / 460-795V 60Hz
KW 2.2 / 2.5  3.0 / 3.5 7.5 / 8.6 15 / 17.3
Amps 8,3 -4,8 / 8,3-4,8  12,1- 7,0 / 12,1- 7,0 14,4 - 8,3 / 14,4 - 8,3 28,1-16,3 / 28,1-16,3
Revolution Speed 1435 / 1722 rpm  969 / 1163 rpm 1450 / 1740 rpm 1456 / 1747 rpm
IP Rating 55  55 55 55
Noise level (dB) 79 / 82  76 / 80 85 / 89 90 / 94
Weight (kg) 105 kg  126 kg 200 kg 358 kg
